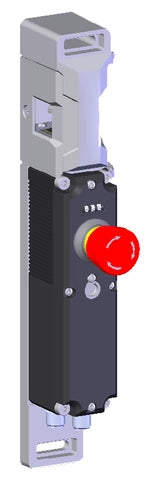

Euchner MGBS-P-I-AP-U-R-ZZE-SBB Interlocking module, e-stop Part number 166240

The MGBS-P-I-AP-U-R-ZZE-SBB is a safety interlocking module with integrated e-stop function, used to guard access points on machinery and process equipment. It connects via two M12, 5-pin plug connectors and carries an IP65 rating, allowing use in environments where dust and moisture ingress must be controlled. The housing is constructed from die-cast zinc and reinforced thermoplastic, and the unit is rated for DC-13 24 V 150 mA switching duty with an actuating force of 40 N.

Key specifications

• IP rating: IP65
• Connection: 2 plug connector M12, 5-pin
