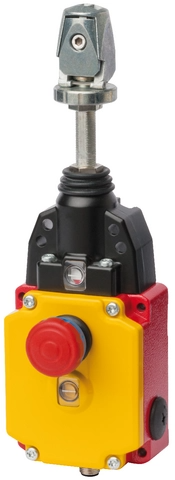

Euchner RPS-M-3131SC300SFM5 Rope pull switch, pull-to-reset Part number 119844

The RPS-M-3131SC300SFM5 is a rope pull switch with a pull-to-reset mechanism, housed in die-cast aluminium and fitted with an M12 plug connector for wiring. It is designed for use in emergency stop applications along conveyors or machine lines, where a pulled rope actuates the switch to interrupt operation. The device...
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: In stock
Product type: Safety Automation
Please hurry! Only 5 left in stock
Description
Description
x

The RPS-M-3131SC300SFM5 is a rope pull switch with a pull-to-reset mechanism, housed in die-cast aluminium and fitted with an M12 plug connector for wiring. It is designed for use in emergency stop applications along conveyors or machine lines, where a pulled rope actuates the switch to interrupt operation. The device is rated for DC-13 0.27 A 50 V and AC-15 3 A 50 V duty, with an actuating force of 300 N.

Key specifications

  • Connection: Plug connector M12
Specifications
Specifications
x
Global Compliance / Compliance with StandardsIEC 60269-1
Material: Housing MaterialDie-cast aluminium
Weight (g)1204g
Connection TypePlug connector M12
Utilization CategoryDC-13 0.27 A 50 V / AC-15 3 A 50 V
Switching Currentat 24V min. 10 mA
Actuating Force300 N
