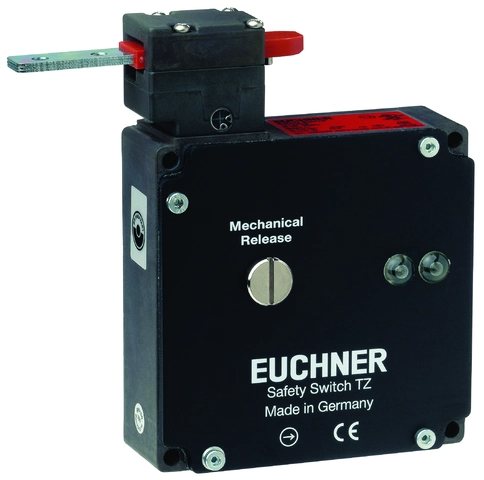

Euchner TZ1LE024MVAB Safety switch, aux release on front Part number 083965

The TZ1LE024MVAB is a solenoid-interlocked safety switch from the Euchner TZ1 series, featuring an auxiliary release on the front and a die-cast alloy housing with silver alloy, gold-flashed contacts. It operates at a solenoid voltage of 24 V AC/DC and switches loads within the AC-15 4 A 230 V and DC-13 4 A 24 V utilisation categories, connecting via a single M20 x 1.5 gland entry. It is designed for guard locking applications on machine safety doors where controlled access and interlocking are required, in compliance with EN IEC 62061 and EN ISO 13849-1.

Key specifications

• Connection: 1 x M20 x 1.5
