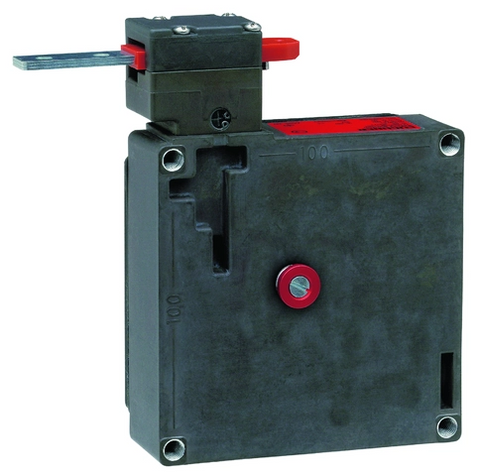

Euchner TZ1LE024M-C1684 Safety switch, escape release + pushbutton
Euchner TZ1LE024M-C1684 Safety switch, escape release + pushbutton

Euchner TZ1LE024M-C1684 Safety switch, escape release + pushbutton

This TZ1LE024M-C1684 safety switch with escape release and pushbutton is designed for industrial safety applications. It features two LED displays, an auxiliary release on the front, and an escape release on the rear. The housing is made of anodized die-cast alloy, and the switch provides reliable performance with IP67 protection.
Vendor: Euchner
SKU: 083170
Availability: In stock (Purchase on demand)
Product type: Safety Automation
Please hurry! Only 4 left in stock
Description
Description
x

This TZ1LE024M-C1684 safety switch with escape release and pushbutton is designed for industrial safety applications. It features two LED displays, an auxiliary release on the front, and an escape release on the rear. The housing is made of anodized die-cast alloy, and the switch provides reliable performance with IP67 protection.

Specifications
Specifications
x
Global Compliance / Compliance with StandardsEN IEC 62061 / EN ISO 13849-1
Weight (g)1210g
Connection TypeM20 x 1.5
Utilization CategoryAC-15 4 A 230 V / DC-13 4 A 24 V
Switching Currentmin. at 24 V 1 mA
Switching Voltagemin. at 10 mA 12 V
Extraction Force30 N
Actuating Force35 N
Solenoid Operating VoltageAC/DC 24 V -15% ... +10%
Documents
Documents
x
Download Datasheet
