Description

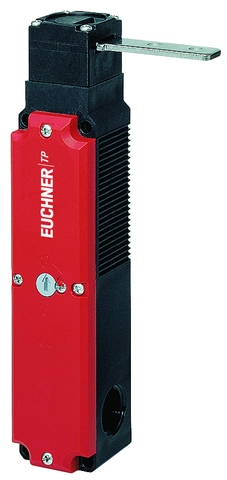

xThis safety switch features a robust design with slow-action switching contacts, making it suitable for demanding industrial environments. It includes an auxiliary release and is designed for applications requiring reliable guard locking and monitoring. The switch offers IP67 protection and can be used in both horizontal and vertical orientations.
Specifications
x| IP Rating | IP67 |
| Material: Housing Material | Gold flashed silver alloy / Reinforced thermoplastic |
| Weight (g) | 466g |
| Connection Type | M20 x 1.5 (x3) |
| Utilization Category | AC-15 4 A 230 V / DC-13 4 A 24 V |
| Switching Current | min. at 24 V 1 mA |
| Switching Voltage | min. at 10 mA 12 V |
| Actuating Force | 10 N |
| Solenoid Operating Voltage | AC/DC 24 V -15% - 10% |
