Description

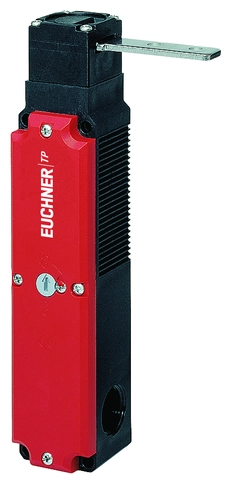

xThis safety switch offers a robust solution for industrial safety applications, featuring a long housing with three cable entries and slow-action switching contacts. It is equipped with two positively driven contacts and one NO contact, providing reliable performance in environments where both horizontal and vertical approach directions are necessary.
Specifications
x| Material: Housing Material | Reinforced thermoplastic / Silver alloy / Gold flashed \r |
| Weight (g) | 475g |
| Connection Type | 3 x M20 x 1.5 |
| Utilization Category | AC-15 4 A 230 V / DC-13 4 A 24 V |
| Switching Current | min. at 24 V 1 mA |
| Switching Voltage | min. at 10 mA 12 V |
| Actuating Force | 10 N |
| Solenoid Operating Voltage | AC/DC 24 V -15% ... +10% |
