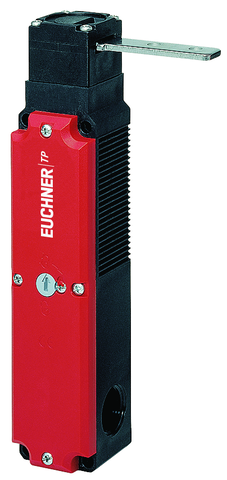

Euchner TP3-4121K024M Safety switch, door monitoring contact Part number 084260

This safety switch is designed for door monitoring applications on industrial machinery and guarding systems. It detects the position of a guard door and provides a contact signal used within a safety circuit to prevent hazardous machine operation while the door is open. Typical use is on panel or machine...
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x

This safety switch is designed for door monitoring applications on industrial machinery and guarding systems. It detects the position of a guard door and provides a contact signal used within a safety circuit to prevent hazardous machine operation while the door is open. Typical use is on panel or machine access points where door status must be monitored as part of the overall safety automation scheme.

Specifications
Specifications
x
Solenoid operating voltageAC/DC 24 V +10%, -15%
Guard locking typeClosed-circuit current principle, guard locking by spring force
Switching element4121 Slow-action switching contact 2 NC + 1 NC / 1 NO (door monitoring contact)
Power consumption8 W
Connection cross section0.34 ... 1.5 mm²
Rated insulation voltage Ui250 V
Rated impulse withstand voltage Uimp2.5 kV
Utilization category DC-13 AC-154 A 24 V / 4 A 230 V
Solenoid duty cycle100 %
min. switching voltage at 10 mA12 V
Switching current min. at 24 V1 mA
Thermal rated current Ith4 A
Approach speedmax. 20 m/min
Connection type3 x M20 x 1.5
Number of door position NC contacts1
Number of door position NO contacts1
Extraction force20 N
Actuation frequencymax. 1200 1/h
Actuating force10 N
Installation orientationany
Mechanical life1 x 10⁶
Retention force10 N
Switching principleSlow-action switching contact
Degree of protectionIP67
Ambient temperature-20 ... +55 °C
Housing materialReinforced thermoplastic
Contact materialSilver alloy, gold flashed
Locking force Fmax1300 N
Locking force FZh1000 N
Guard locking principleClosed-circuit current principle
