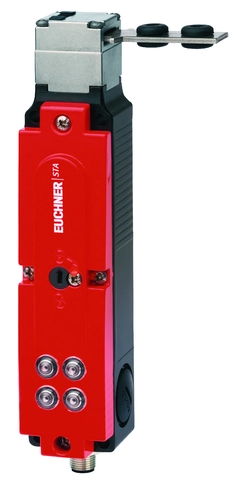

Euchner STA4A-4141A024SEM4AS1 Safety switch, plug conn. M12

The STA4A-4141A024SEM4AS1 is a safety switch with guard locking from Euchner's STA4 series, fitted with an M12 plug connector for ASi-3 interface connection. It monitors both the guard position and the locking state, using red and green LED indicators to signal status, and includes an auxiliary release and locking screw....

Vendor: Euchner

Rubicon Industrial Technology is the exclusive South African distributor for Euchner.

Availability: In stock

Product type: Safety Automation

Please hurry! Only 2 left in stock

Description
Specifications
Documents
Alternatives

STA4A-4141A024SEM4AS1 (Order no. 105305)

Product Overview

Type: STA ASi safety switch, plug connector(s) M12
Features:
- AS-Interface
- Plug connector(s) M12, 4-pin
- Auxiliary release
- Open-circuit current principle

Description

Approach direction

Horizontal and vertical, can be adjusted in 90° steps. Increased overtravel with horizontal approach direction.

If increased play is required when the door is closed, an actuator with overtravel is available. This actuator allows the door to move slightly in the actuating direction when closed. This is important, for example, if safety doors have a rubber buffer as an end stop. An actuator with overtravel can reduce the permanent pressure of the compressed rubber buffer. This reduces the load on both the switch head and the door mechanism.

Guard locking principle

Operating current (power to lock): In the case of a safety guard with guard locking according to the open-circuit current principle, the safety guard is locked until the power supply to the guard locking solenoid is break-before-make. The guard is unlocked by spring force. This is also referred to as electrical guard locking.

Control of the guard locking solenoid

The guard locking solenoid is controlled via AS-Interface bit D0.

Auxiliary voltage

The ASi auxiliary voltage is required to supply the guard locking solenoid.

AS-Interface inputs

Input	Description
D0, D1	Monitoring of the guard position
D2, D3	Monitoring the guard locking

AS-Interface outputs

Output	Description
D0	Activating the guard locking
D1	LED red
D2	LED green

Dimensional Drawings

Label	Description
1	Auxiliary release
2	Locking screw
3	LED indicator

Technical Data

Approvals

Electrical connection values

Parameter	Value
ASI operating current	max. 45 mA
AS-Interface auxiliary voltage	24 V -15 to 10 %
Auxiliary current AS-Interface	300 mA
AS-Interface protocol	ASi-3
Solenoid duty cycle	100 %

Mechanical values and environment

Parameter	Value
Approach speed	max. 20 m/min
Degree of protection	IP67
Ambient temperature	-20 to +55 °C
Material	Contact: Silver alloy, gold flashed; Housing: Alloy - die-cast
