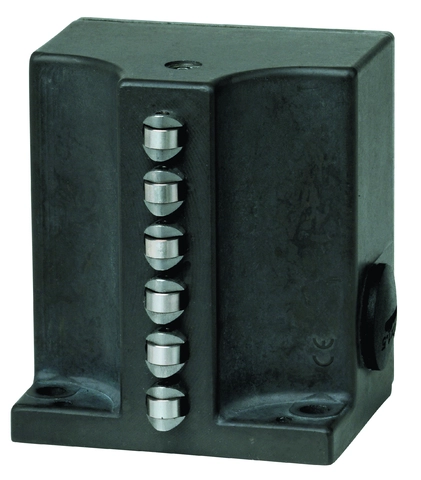

Euchner SN04R12-502-M Multiple limit switch, 1NC + 1NO, 12mm spacing
Euchner SN04R12-502-M Multiple limit switch, 1NC + 1NO, 12mm spacing

Euchner SN04R12-502-M Multiple limit switch, 1NC + 1NO, 12mm spacing

This SN04R12-502-M limit switch is equipped with a roller plunger for precise actuation. It features a snap-action switching contact with 1 NC and 1 NO configuration, housed in an upright die-cast aluminum housing. It offers IP67 protection and is ideal for use in industrial applications requiring accurate control.
Vendor: Euchner
SKU: 082161
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x

This SN04R12-502-M limit switch is equipped with a roller plunger for precise actuation. It features a snap-action switching contact with 1 NC and 1 NO configuration, housed in an upright die-cast aluminum housing. It offers IP67 protection and is ideal for use in industrial applications requiring accurate control.

Specifications
Specifications
x
Global Compliance / Compliance with StandardsIEC 60269-1
Material: Housing MaterialSilver alloy / Gold flashed / Die-cast alloy / Anodised
Weight (g)443g
Connection Type2 x M20 x 1.5
Utilization CategoryAC-12 8 A 250 V DC-13 6 A 24 V AC-15 6 A 230 V
Switching Currentmin. at DC 12V min. 10 mA
Actuating ElementSlide bearing Roller plunger
Actuating Forcemin. 20 N
Documents
Documents
x
Download Datasheet
