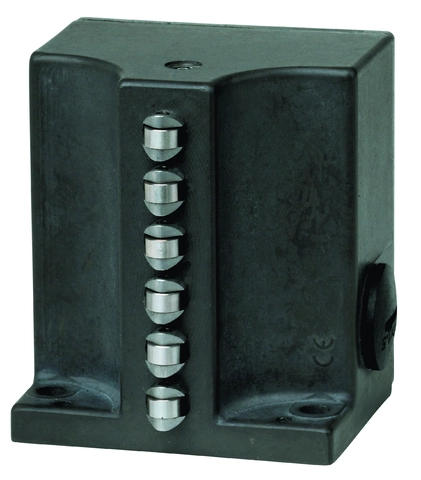

Euchner SN02D12-502-M Limit Switch, 1NC + 1NO, 12mm Euchner
Euchner SN02D12-502-M Limit Switch, 1NC + 1NO, 12mm Euchner

Euchner SN02D12-502-M Limit Switch, 1NC + 1NO, 12mm Part number 082165

This limit switch provides one normally closed and one normally open contact in a 12 mm housing format. It is used to detect the position or presence of moving machine parts, feeding signals into control or safety circuitry. Typical applications include machine guarding and position sensing on industrial equipment where...
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x

This limit switch provides one normally closed and one normally open contact in a 12 mm housing format. It is used to detect the position or presence of moving machine parts, feeding signals into control or safety circuitry. Typical applications include machine guarding and position sensing on industrial equipment where a compact switch format is required.

Specifications
Specifications
x
Plunger spacing12 mm
Degree of protectionIP67 according to IEC 60529
Rated insulation voltage Ui250 V
Rated impulse withstand voltage Uimp2.5 kV
Connection cross section0.34 ... 1.5 mm²
Utilization category AC-12 DC-13 AC-158 A 250 V
Short circuit protectionaccording to 8A gG IEC 60269-1
Switching current min. at DC 12Vmin. 10 mA
Thermal rated current Ith8 A
Approach speed0.01 ... 40 m/min
Connection type2 x M20 x 1.5
Number NC contacts2
Number of switching elements2
Number of NO contacts2
Designupright
Actuating elementChisel plunger
Actuating forcemin. 20 N
Mechanical life30 x 10⁶
Switching principleSnap-action switching contact
Ambient temperature-5 ... +80 °C
Housing materialDie-cast aluminum, anodized
Contact materialSilver alloy, gold flashed
Documents
Documents
x
Download Datasheet
