Euchner RADIUSBETAETIGER-X-LR-N, Hinged actuator, left/right Euchner
Euchner RADIUSBETAETIGER-X-LR-N, Hinged actuator, left/right Euchner

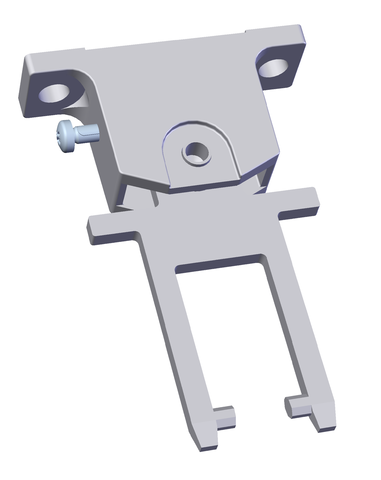

Euchner RADIUSBETAETIGER-X-LR-N, Hinged actuator, left/right Part number 098082

This hinged actuator is designed for use with Euchner safety position switches on doors that open along a curved path, supporting installation on both left and right hand hinged doors with a minimum door radius of 100 mm. It accommodates overtravel of up to 7 mm, allowing for variation in...
Vendor: Euchner
Availability: In stock
Product type: Safety Automation
Please hurry! Only 8 left in stock
Description
Description
x

This hinged actuator is designed for use with Euchner safety position switches on doors that open along a curved path, supporting installation on both left and right hand hinged doors with a minimum door radius of 100 mm. It accommodates overtravel of up to 7 mm, allowing for variation in door movement while maintaining engagement with the switch. Constructed from stainless steel for both actuator and screw, it is suited to industrial guarding applications on machine and panel enclosures.

Specifications
Specifications
x

RADIUSBETAETIGER-X-LR-N (Order no. 098082)

EUCHNER – More than safety.PDF

Hinged actuator, left/right, for safety switch NX/TX

  • Actuator made of stainless steel
  • Two stainless-steel safety screws per actuator
RADIUSBETAETIGER-X-LR-N (Order no. 098082)

Description

Hinged actuators

For door radii less than 300 mm a hinged actuator should be used. The spring action movement of the actuator prevents damage due to the actuator jamming in the actuator head. Depending on the movement of the guard, the actuator must be selected for left/right or top/bottom.

Screws made of stainless steel

The safety screws included can be inserted with a normal tool, but cannot be removed again.

Dimensional drawings

Dimension drawingDimensional drawings

Technical data

Mechanical values and environment

Overtravel max. 7 mm
Door radius min. 100 mm
Material
Actuator Stainless steel
Screw Stainless steel

Miscellaneous

Usability of insertion funnel no

Downloads

Documents

CAD data

Show CAD data for TraceParts

Shipping Details

Item designation RADIUSBETAETIGER-X-LR-N
Gross weight 0.047kg
Customs tariff number 85389099990
ECLASS 27-27-26-06 Actuator for safety-related position switch
Documents
Documents
x
Download Datasheet
