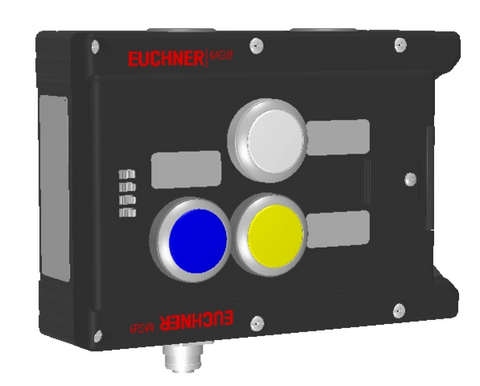

Euchner R-110546 Interlocking module MGB, 3 pushbuttons

This interlocking module belongs to the Euchner MGB range and is fitted with three illuminated pushbuttons in white, yellow and blue, each providing one NO contact. It is designed for mounting on MGB guard-locking devices, allowing local pushbutton control and status indication directly at the safety switch. Construction uses fibre...

Vendor: Euchner

SKU: 110546

Availability: In stock

Product type: Safety Automation

Please hurry! Only 1 left in stock

Description
Specifications
Documents
Alternatives

MGB-L0-APA-AA6A1-S3-R-110546 (Order no. 110546)

Product Description

Interlocking module MGB-L0-APA.., with 3 pushbuttons, incl. label carrier, M12 for enabling switch

Interlocking (without guard locking)
3 pushbuttons (illuminated, white, yellow, blue)
Includes adhesive labels
With cable entry
With plug connector M12 for enabling switch
Unicode

MGB-L0-APA-AA6A1-S3-R-110546 (Order no. 110546)

Technical Data

Approvals

Operating and Display Elements

Item	Color	Extras	Switching Element
2	White	1 NO contact, illuminated	Illuminated pushbutton
3	Yellow	1 NO contact, illuminated	Illuminated pushbutton
4	Blue	1 NO contact, illuminated	Illuminated pushbutton

Electrical Connection Values

Connection Cross Section	(rigid/flexible) 0.13 - 1.5 mm² (AWG 24 - AWG 16)
Rated Insulation Voltage Ui	30 V
Rated Impulse Withstand Voltage Uimp	1.5 kV
Safety Class	III
