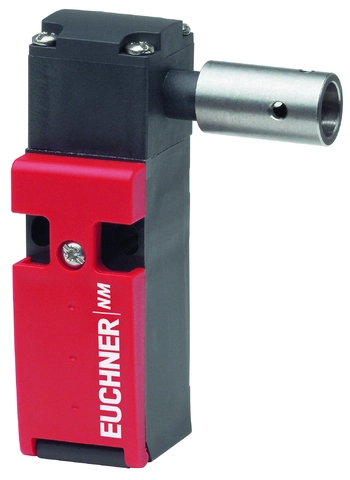

Euchner NM01AG-M Safety switch, hinged actuator as hollow shaft
Euchner NM01AG-M Safety switch, hinged actuator as hollow shaft

Euchner NM01AG-M Safety switch, hinged actuator as hollow shaft

This safety switch is designed for use in industrial applications, featuring a hinged actuator as a hollow shaft with an internal diameter of 10.2 mm. It offers slow-action switching contact with 1 NC configuration and is suitable for use in demanding environments requiring high reliability and durability.
Vendor: Euchner
SKU: 084553
Availability: In stock
Product type: Safety Automation
Please hurry! Only 6 left in stock
Description
Description
x

This safety switch is designed for use in industrial applications, featuring a hinged actuator as a hollow shaft with an internal diameter of 10.2 mm. It offers slow-action switching contact with 1 NC configuration and is suitable for use in demanding environments requiring high reliability and durability.

Specifications
Specifications
x
IP RatingIP67
Global Compliance / Compliance with StandardscULus / DNV-GL
Material: Housing MaterialGold flashed silver alloy / Reinforced thermoplastic \r
Diameter (mm)10.2mm (internal diameter)
Weight (g)111g
Connection TypeM16 x 1.5
Utilization CategoryAC-15 4 A 230 V / DC-13 4 A 24 V
Switching Currentmin. at 24 V 1 mA
Switching Voltagemin. at 10 mA 12 V
Actuating ElementSlide bearing plastic / Hinged actuator hollow shaft (d = 10.2 mm)
Documents
Documents
x
Download Datasheet
