Euchner N1AK502-M Precision single limit switch, ball plunger
Euchner N1AK502-M Precision single limit switch, ball plunger

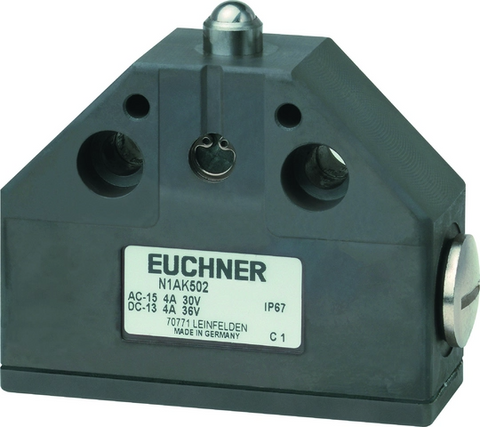

Euchner N1AK502-M Precision single limit switch, ball plunger Part number 083847

This single limit switch from Euchner uses a ball plunger actuator for position detection in automation applications. It is designed for mounting on machines and panels where mechanical confirmation of a component's position is required. The ball plunger design suits applications involving linear or rotary motion where direct contact actuation...
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: In stock
Product type: Safety Automation
Please hurry! Only 5 left in stock
Description
Description
x

This single limit switch from Euchner uses a ball plunger actuator for position detection in automation applications. It is designed for mounting on machines and panels where mechanical confirmation of a component's position is required. The ball plunger design suits applications involving linear or rotary motion where direct contact actuation is needed.

Specifications
Specifications
x
Plunger materialstainless steel
Housingaccording to DIN 43693
Protection classIP67
Rated insulation voltage Ui250 V
Rated impulse withstand voltage Uimp2.5 kV
Thermal rated current Ith8 A
Approach speed0.01 ... 10 m/min
Number NC contacts1
Number of switching elements1
Number of NO contacts1
DesignHousing according to DIN 43693
Actuating elementBall plunger
Actuating forcemin. 20 N
Mechanical life30 x 10⁶
Contact bounce timemax. 3 ms
Switching principleSnap-action switching contact
Operating point accuracy± 0,002
Schließzeitmax. 4 ms
Ambient temperature-5 ... +80 °C
Housing materialAnodized die-cast alloy
Contact materialSilver alloy, gold flashed
Documents
Documents
x
Download Datasheet
