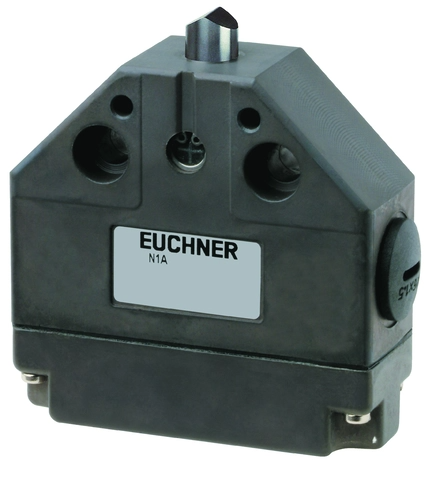

Euchner N1AD502LE060-M Precision single limit switch Part number 087207

This precision single limit switch is used to detect the position of moving machine parts or guard doors, providing a signal to the control system for monitoring or safety-related functions. It is designed for mounting on industrial machinery and panels within automation and safety circuits. The device forms part of...
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x

This precision single limit switch is used to detect the position of moving machine parts or guard doors, providing a signal to the control system for monitoring or safety-related functions. It is designed for mounting on industrial machinery and panels within automation and safety circuits. The device forms part of Euchner's range of position-sensing components used in machine safeguarding applications.

Specifications
Specifications
x
Plunger MaterialStainless steel
HousingAccording to DIN 43693
Connection Cross Section0.34 ... 1.5 mm²
Rated Insulation Voltage (Ui)250 V
Rated Impulse Withstand Voltage (Uimp)2.5 kV
Utilization Category AC-128 A 250 V
Utilization Category DC-136 A 24 V
Utilization Category AC-156 A 230 V
Short Circuit Protection8A gG according to IEC 60269-1
Thermal Rated Current (Ith)8 A
Approach Speed0.01 ... 40 m/min
Connection Type2 x M16 x 1.5
Number of NC Contacts1
Number of NO Contacts1
Actuating ElementChisel plunger
Actuating Forcemin. 20 N
Mechanical Life30 x 10⁶
Contact Bounce Timemax. 3 ms
Switching PrincipleSnap-action switching contact
Operating Point Accuracy± 0.002
Schließzeitmax. 4 ms
Degree of ProtectionIP67
Ambient Temperature-5 ... +80 °C
Contact MaterialSilver alloy, gold flashed
Housing MaterialAnodized die-cast alloy
