Euchner N01R550SVM5-M Precision single limit switch, M12
Euchner N01R550SVM5-M Precision single limit switch, M12

Euchner N01R550SVM5-M Precision single limit switch, M12

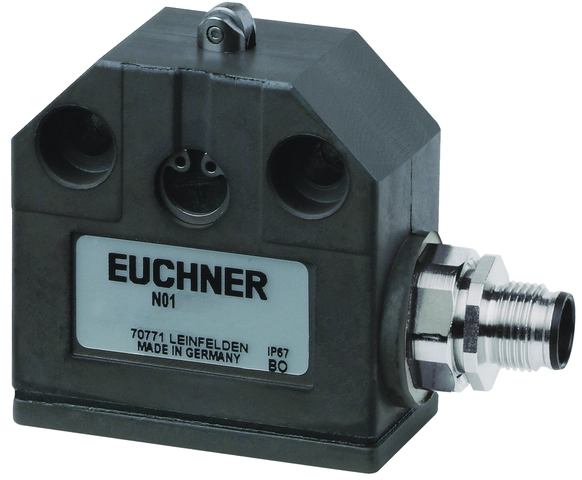

This N01R550SVM5-M precision single limit switch features a roller plunger and an M12 plug connector. It is designed for high-precision applications in industrial environments, offering reliable switching with snap-action contacts. The switch is housed in a robust anodized die-cast alloy, providing long-lasting performance with IP64 protection.
Vendor: Euchner
SKU: 088622
Availability: In stock
Product type: Safety Automation
Please hurry! Only 1 left in stock
Ask an expert
Description
Description
x

This N01R550SVM5-M precision single limit switch features a roller plunger and an M12 plug connector. It is designed for high-precision applications in industrial environments, offering reliable switching with snap-action contacts. The switch is housed in a robust anodized die-cast alloy, providing long-lasting performance with IP64 protection.

Specifications
Specifications
x
Global Compliance / Compliance with StandardsIEC 60269-1
Material: Housing MaterialSilver alloy / Gold flashed / Die-cast alloy / Anodised
Weight (g)100g
Connection TypePlug connector M12 / Adjustable
Utilization CategoryDC-13 2 A 24 V / AC-15 2 A 30 V
Switching Currentmin. at DC 24V 10 mA
Actuating ElementSlide bearing metal Roller plunger
Actuating Force15 ... 20 N
Documents
Documents
x
Download Datasheet
