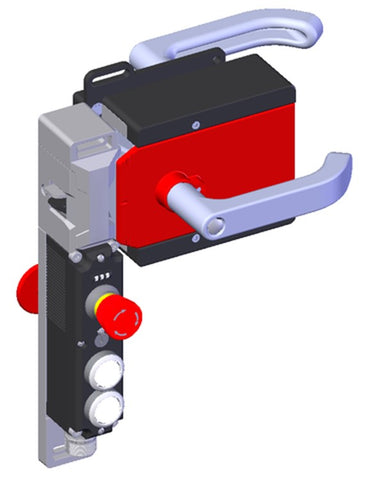

Euchner MGBS-P-L2HE-AR-U-R-SH Locking module + handle, right hinged Part number 164688

The MGBS-P-L2HE-AR-U-R-SH is a locking module with right-hinged handle from Euchner's MGB safety locking series, used for guarding access points on machinery and process equipment. It connects via a single M23 19-pin plug connector and operates from a 24 V supply, drawing 6 W, with safety outputs rated for switching currents up to 150 mA. The housing combines brass, die-cast zinc, fibre glass reinforced plastic, powder-coated and stainless steel components, giving an IP65 rating suitable for industrial environments, and the unit carries cULus compliance.

Key specifications

• IP rating: IP65
• Connection: 1 plug connector M23, 19-pin, RC18
