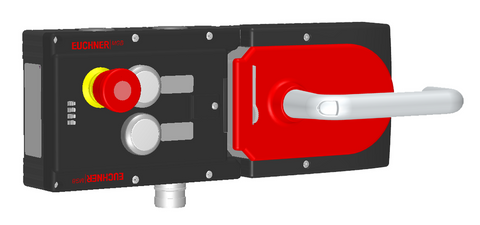

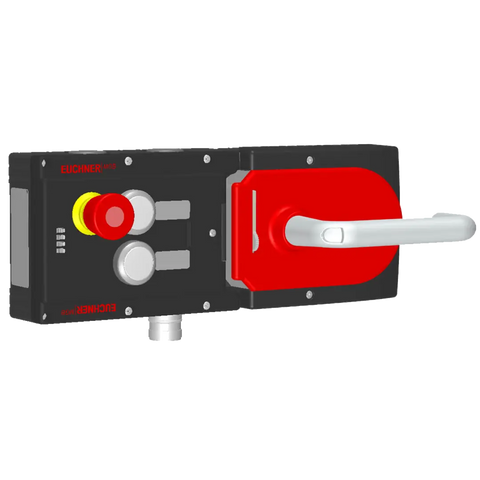

Euchner MGB-L1H-APA-R Locking set, label carrier Part number 109772

Euchner's Locking set MGB-L1H-APA..., Guard locking with guard lock monitoring (guard locking by spring force). The locking arm is held in the locked position by spring force and is unlocked by solenoid force (closed-circuit current principle, mechanically locked). The 2 push buttons that are illuminated, S2 1NO white and S3...
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x
Euchner's Locking set MGB-L1H-APA..., Guard locking with guard lock monitoring (guard locking by spring force). The locking arm is held in the locked position by spring force and is unlocked by solenoid force (closed-circuit current principle, mechanically locked). The 2 push buttons that are illuminated, S2 1NO white and S3 1No white. The complete MGB, is S12 positively driven NC contacts, emergency stop with turn-to-reset, illuminated. A mechanical door stop is permanently integrated into the evaluation module of the MGB. and has a plug connector RC18.\n A marking on the stop makes adjustment easier. Devices with adhesive labels have pre-formed recesses. The adhesive labels enclosed (standard size 12.5 x 27 mm) can be affixed in these recesses.
Specifications
Specifications
x
Dimensions114 x 111 x 19 mm
MaterialFiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel
Operating voltage DC24 V DC -15% ... +10% (reverse polarity protected, regulated, residual ripple < 5%, PELV)
Current consumption (UA)max. 375 mA (with energized guard locking solenoid and unloaded outputs OD, OT, OL, OI, +20 °C, 24V)
Current consumption (UB)max. 80 mA (no load on outputs)
Degree of protectionIP65
Ambient temperature-20 ... +55 °C
Locking force2000 N
Safety classIII
Installation orientationDoor hinge DIN right
Mechanical life1 x 10^6 cycles (in case of use as door stop, and 1 Joule impact energy: 0.1 x 10^6 cycles)
Degree of contamination3 according to EN 60947-1
Mission time20 years
Category4
Performance LevelPL e
PFHD2.8 x 10^-9 (Emergency stop 3.7 x 10^-9)
Transponder codingUnicode
