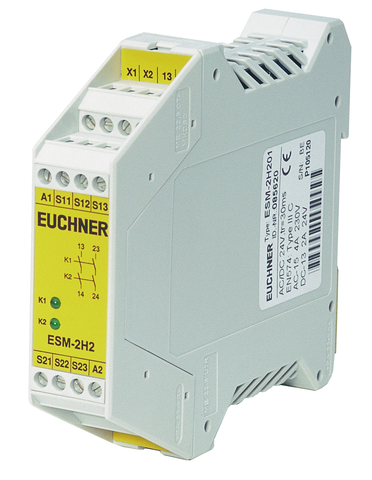

Euchner ESM-2H201 Safety relay, 2-hand control Euchner

The Euchner ESM-2H201 is a safety relay designed for two-hand control applications, providing two safety contacts with floating, positively driven relay outputs. It operates at 24 V AC/DC and mounts to a standard 35mm DIN rail, with connection via screw terminals housed in a polyamide PA6.6 enclosure rated IP20. The...

Vendor: Euchner

Availability: Out Of Stock

Product type: Safety Automation

Please hurry! Only 0 left in stock

Description
Specifications
Alternatives

ESM-2H201 (Order no. 085620)

Safety relay ESM-2H.. , type IIIc evaluation unit for two-hand control

Use up to category 4 according to EN ISO 13849-1
Requirement level IIIC according to EN ISO 13851
LED status indicators
Operation by 2-hand control
2 redundant safety contacts
Short-circuit and earth fault/ground fault monitoring can be selected

Description

Relay outputs

The outputs are electrically decoupled and of redundant design.

Connection

Two buttons, each with one normally closed contact and one normally open contact, that are monitored for simultaneity according to EN ISO 13851. In this way a high level of protection against tampering is provided.
Short circuit monitoring to detect short circuits between the connecting cables and to shut down the outputs or prevent relay starting if necessary.
Earth fault/ground fault monitoring to detect short circuits between the connecting cables and earth or ground and to shut down the outputs or prevent relay starting if necessary.

Connection options

By using suitable wiring the following function can be selected:

Monitoring of downstream relays or contactors.

Dimensional drawings

Connection examples

Technical data

Approvals

Zulassung TÜV Rheinland, BMPB mit ZG: Product Safety, Functional Safety

Mechanical values and environment

Housing material	Polyamide PA6.6
Weight	0,23 kg
Ambient temperature	At UB = 24V AC: -15 ... 40 °C; At UB = 24V DC: -15 ... 60 °C
Degree of protection	IP20
Mechanical life	10 x 10⁶ operating cycles
Contact material	AgSnO2
Mounting method	Mounting rail 35mm according to DIN EN 60715 TH35
Connection	Connection terminals
Length of control cable	With conductor cross-section 0.75mm²: 1000 m
Number of safety contacts	2

Electrical connection ratings

Operating voltage	AC/DC 24 V -10% ... +10%
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	4 kV
Overvoltage category according to IEC EN 60664-1	3
Reverse polarity protection	On version UB =24V DC
Connection rating at 24V DC	1,5 W
Connection cross-section	0,14 ... 2,5 mm²
Control voltage	24 V
Control current	40 mA 2x
Type of output	Relay contacts, floating and positively driven (redundant)
Switching voltage AC	max.250 V
Switching current min.	20 mA at 24V

Other

In compliance with EN 60947-5-1: 2004+A1: 2009; EN ISO 13849-1: 2015; EN 62061: 2005 + AC: 2010 + A1: 2013 + A2: 2015; EN 50581: 2012 (RoHS)

Reliability values according to EN ISO 13849-1

Performance Level	PL e
Category	4
PFHD	1.2 x 10^-8
Number of switching cycles ≤ 3 A at 24 V DC	max.22500 1/Jahr
Mission time	20 y

Downloads

Documents

Declarations of conformity

EU-Konformitätserklärung

Shipping Details

Item designation	ESM-2H201
Gross weight	0,213kg
Global Trade Item Number (GTIN)	4047048006539
Customs tariff number	85364110
ECLASS	27-37-18-19 Device for monitoring of safety-related circuits
