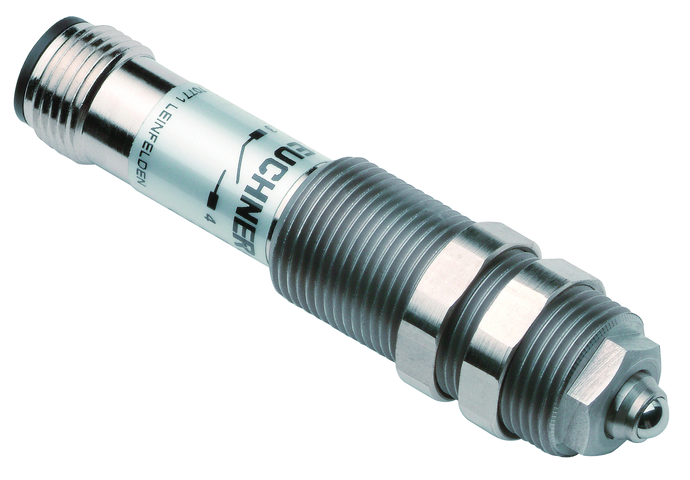

Euchner EGT1/4ASEM4 Single hole fixing limit switch Part number 033976

This is a single hole fixing limit switch used to detect position or provide end-of-travel signalling within safety automation circuits. It mounts through a single hole, suiting applications where panel or machine space is limited. Typical use is on guarding and access points where mechanical position sensing forms part of...
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x

This is a single hole fixing limit switch used to detect position or provide end-of-travel signalling within safety automation circuits. It mounts through a single hole, suiting applications where panel or machine space is limited. Typical use is on guarding and access points where mechanical position sensing forms part of the overall safety function.

Specifications
Specifications
x
Plunger MaterialStainless Steel
Actuating ElementBall Plunger (Short)
Actuating Force16 N
Approach Speed Connection TypeMax. 8 m/min
Connection TypePlug Connector M12 (4-pin)
Number of NO Contacts1
DesignThread M14 x 1
Mechanical Life30 x 10⁶ cycles
Degree of ProtectionIP67
Ambient Temperature-25 ... +80 °C
Rated Insulation Voltage50 V
DC-13 Utilization Category0.3 A 24 V
AC-12 Utilization Category0.3 A 30 V
Short Circuit Protection0.4A gG
Minimum Switching Voltage1 V
Minimum Switching Current at 24 V1 mA
Repeat Accuracy (Absolute)±0.01 mm
