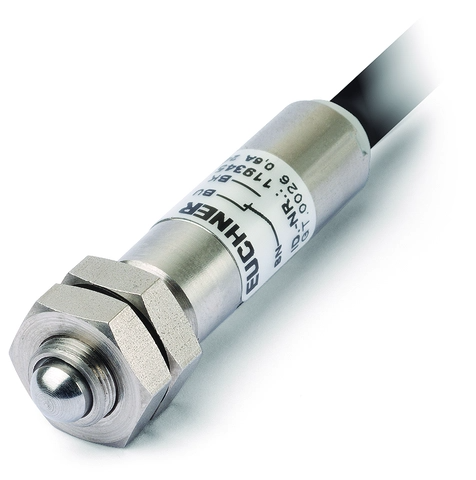

Euchner EGM8 Precision single hole fixing limit switch, M8 x 0.5

The Euchner EGM8 is a single hole fixing limit switch with an M8 x 0.5 threaded body, designed for direct mounting into machine structures where space is limited. It features a rounded plunger actuating element and a changeover contact configuration, with a stainless steel housing rated IP65 for use in...

Vendor: Euchner

Rubicon Industrial Technology is the exclusive South African distributor for Euchner.

Availability: Out Of Stock

Product type: Safety Automation

Please hurry! Only 0 left in stock

Description
Specifications
Documents
Alternatives

EGM8-1000C2396 (Order no. 119345)

Name: Euchner EGM8 Precision single hole fixing limit switch, M8 x 0.5
Brand: Euchner
SKU: 119345

Product Overview

PDF

Precision single hole fixing limit switch EGM8

Precise and small
Round design with thread M8x0.5
Housing and plunger made of stainless steel
With snap-action switching element
Any installation orientation

Description

Switching element

Snap-action switching contact, 1 changeover contact

Single hole fixing limit switches must not be used as an end stop.

Dimensional drawings

Connection examples

Technical data

Approvals

Electrical connection values

Connection cross section	0.5 mm²
Rated insulation voltage Ui	250 V
Rated impulse voltage Uimp	2.5 kV
Utilization category
DC-13	0.6 A 24 V
AC-15	0.5 A 230 V
Short circuit protection according to IEC 60269-1	2A gG
Switching voltage	min. 12 V
Switching current	min. at 24 V 10 mA

Mechanical values and environment

Approach speed	0.01 - 8 m/min
Connection type	PUR cable (three-core)
Number NC contacts	1 (Changeover contact)
Number of NO contacts	1 (Changeover contact)
Design	Thread M8 x 0.5
Actuating element	Rounded plunger (short)
Actuating force	16 N
Installation orientation	any
Cable length	1 m
Mechanical life	1 x 106
Switching principle	Snap-action switching contact
Degree of protection	IP65
Ambient temperature	-20 to 80 °C
Material
Housing	stainless steel
Contact	Silver alloy, gold plated
Repeat accuracy (absolute)	±0.01 mm (on axial actuation in the retracted state after approx. 2,000 operating cycles)
