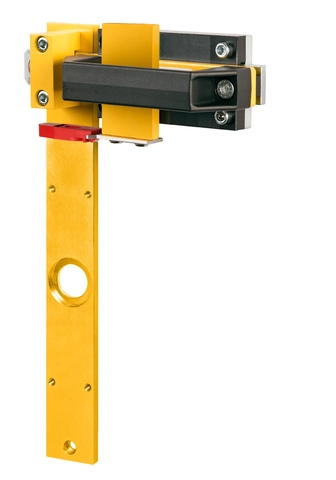

Euchner CTP-AC-123653 Bolt for safety switches, series CTP
Euchner CTP-AC-123653 Bolt for safety switches, series CTP

Euchner CTP-AC-123653 Bolt for safety switches, series CTP

This bolt is an accessory for the Euchner CTP series of safety switches, used to actuate the switch when mounted on a hinged safety guard door. It is designed for approach direction A or C and accommodates one safety switch per unit, suiting a 40x40 safety guard frame with the...
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
SKU: 123653
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x

This bolt is an accessory for the Euchner CTP series of safety switches, used to actuate the switch when mounted on a hinged safety guard door. It is designed for approach direction A or C and accommodates one safety switch per unit, suiting a 40x40 safety guard frame with the door hinged on the right. Construction includes a galvanised steel base plate, plastic guide strips, a steel powder-coated switch bracket and a plastic handle. The bolt must not be used in conjunction with an escape release.

Specifications
Specifications
x

RIEGEL CTP-AC-123653 (Order no. 123653)

PDF

Bolt for safety switch CTP, CTA

  • Steel bolt
  • For doors hinged on the right and left
  • Can be locked in open position with padlocks
  • Actuator included

Description

Benefits

  • Robust construction
  • Easily mounted to standard aluminum profiles and machine covers by screw connection
  • Distinctive yellow color for easy recognition
  • No additional door handle necessary

Notes

  • The bolts are suitable for series CTP and CTA.
  • Order safety switch separately

Dimensional drawings

1 View B
2 Attention! Bolt is not allowed to be used with an escape release!
3 Safety switch CTP approach direction A
4 Door hinged on the right
5 Safety guard frame (40x40)

Technical data

Mechanical values and environment

Approach direction A or C
Number of safety switches that can be mounted 1
Escape release none
Base plate Galvanized steel
Guide strips Plastic
Switch bracket Steel powder-coated
Handle Plastic

Miscellaneous

Detent mechanism none

Downloads

Documents

  • Data sheet
  • Instructions
  • Safety Information for Bolts

Shipping Details

Item designation RIEGEL CTP-AC-123653
Gross weight 2,146kg
Customs tariff number 83014090000
