Description

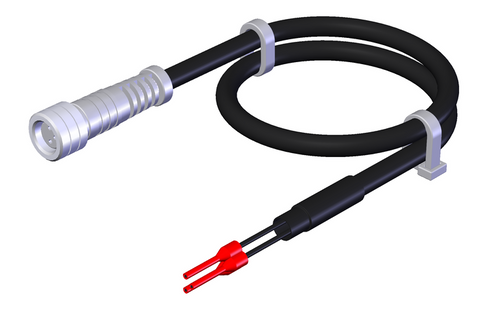

xEuchner's connection cable with plug connector female M8, 3-pin. The plug connector is straight with a 15 m PUR cable length.
Specifications
x
| Rated voltage | |
| DC | 60 V |
| Rated surge voltage according to IEC 60664-1 | 1500 V |
| Nominal current | |
| at 25 °C | 4 A |
| Test voltage | |
| Wire | 0.5 kV |
| Cable shielding | yes (Coverage 85%) |
| specific inductance | 0.45 mH/km |
| specific capacitance | 60 nF/km |
| specific capacitance | 120 nF/km |
| specific conductor resistance | |
| at 20 °C | 78 Ω/km |
| Degree of contamination according to EN 60664-1 | 3 |
Mechanical values and environment
| Conductor identification | Color code |
| Conductor cross-section | 0.25 mm² |
| Number of conductors | 2 |
| Tightening torque | 0.4 Nm |
| Dynamic bending radius | 7.5x cable diameter |
| Static bending radius | 5x cable diameter |
| Fire behavior | flame retardant according to DIN EN 60332-2-1 and VDE 0482-332-2-1 |
| Halogen-free | yes |
| Cable type | straight |
| Cable diameter | approx. 4.3 mm |
| Cable length | 15 m |
| Sheath color | black |
| Resistance to media | largely resistant to greases, cooling fluids and lubricants. Oil-resistant according to DIN VDE 0473 part 811. |
| Drag chain suitability | yes |
| Cable ambient temperature (dynamic) | -25 to 70 °C |
| Cable ambient temperature (static) | -25 to 80 °C |
| Material | |
| Conductor insulation | TPE-V |
| Sheath | PUR |
| Conductor | Cu flexible wire bare |
| Connection 2 | |
| Conductor end | Cable end sleeve |
| Connection type | flying lead |
| Connection 1 | |
| Connection type | Plug connector M8x1 |
| Connection type | Female plug |
| Plug connector designation | M8x1 |
| Insulating material group | II |
| Cable outlet | straight |
| Number of pins | 3 |
| Degree of protection | IP67 |
| Plug lock | Screw connection |
| Insertion cycles | 100 |
| Material | |
| Plug housing | PUR |
| Plug lock | CuZn, nickel plated |
Downloads
Documents
- Declarations of conformity Instructions Safety information Approvals and certificates c UL us
Shipping Details
| Item designation | C-M08F03-02X025PU15,0-ES-084764 |
| Gross weight | 0,399kg |
| Global Trade Item Number (GTIN) | 4047048000841 |
| Customs tariff number | 85444290900 |
| ECLASS | 27-06-03-04 Appliance cord (data cable) |
