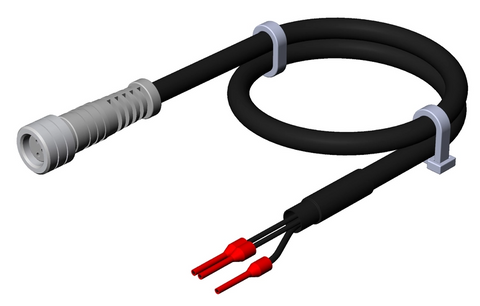

Euchner Connecting cable with plug connector, M8, 3-pin, 10m Part number 077767

This is a pre-made connecting cable fitted with an M8, 3-pin plug connector, supplied in a 10 metre length. It is used to link safety automation devices, such as switches or sensors, to control cabinets or junction boxes without the need for manual termination. The M8 connector format suits compact...
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x

This is a pre-made connecting cable fitted with an M8, 3-pin plug connector, supplied in a 10 metre length. It is used to link safety automation devices, such as switches or sensors, to control cabinets or junction boxes without the need for manual termination. The M8 connector format suits compact field-wiring applications typical of automation and safety circuits.

Specifications
Specifications
x
Cable TypeStraight
Cable Length10 m
Cable Diameter4.6 mm
Sheath ColorBlack
Conductor Cross-Section0.25 mm²
Number of Conductors2
Tightening Torque0.4 Nm
Dynamic Bending Radius10x cable diameter
Static Bending Radius5x cable diameter
Degree of ProtectionIP67
Fire BehaviorSelf-extinguishing and flame retardant according to IEC 60332-1-2
Resistance to MediaLargely resistant to certain oils, acids and alkalis
Cable Ambient Temperature (Dynamic)-5 ... +70 °C
Cable Ambient Temperature (Static)-25 ... +80 °C
Plug LockScrew connection
Insertion Cycles100
Material of Conductor InsulationPVC
Conductor MaterialCu flexible wire bare
Sheath MaterialPVC
Cable ShieldingYes
Rated Voltage DC60 V
Test Voltage0.5 kV
Specific Inductance0.65 mH/km
Specific Capacitance160 nF/km
Specific Conductor Resistance at 20 °Cmax. 79 Ω/km
Plug Connector DesignationM8x1
Number of Pins3
