Name: Euchner Connecting cable with plug connector M8, 3-pin, 10m
Brand: Euchner
SKU: 084763

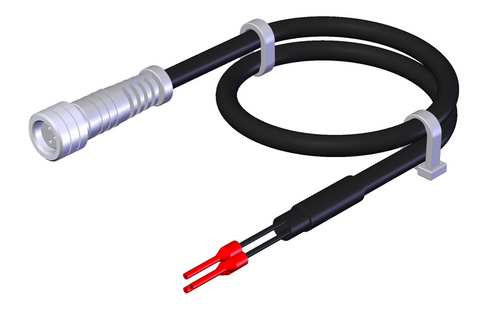

Euchner's connection cable with plug connector female M8, 3-pin. The plug connector is straight with a 10 m PUR cable length.

Vendor: Euchner

Rubicon Industrial Technology is the exclusive South African distributor for Euchner.

Availability: Out Of Stock

Product type: Safety Automation

Please hurry! Only 0 left in stock

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Vendor

Cable Type	straight
Cable Length	10 m
Cable Diameter	4.3 mm
Sheath Color	black
Degree of Protection	IP67
Material of Sheath	PUR
Conductor Material	Cu flexible wire bare
Insulating Material Group	II
Number of Conductors	2
Conductor Cross-Section	0.25 mm²
Number of Pins	3
Rated Voltage	60 V DC
Rated Surge Voltage	1500 V
Nominal Current at 25 °C	4 A
Test Voltage	0.5 kV
Dynamic Bending Radius	7.5x cable diameter
Static Bending Radius	5x cable diameter
Drag Chain Suitability	yes
Cable Ambient Temperature (Dynamic)	-25 ... +70 °C
Cable Ambient Temperature (Static)	-25 ... +80 °C
Degree of Contamination	3
Insertion Cycles	100
Fire Behavior	flame retardant according to DIN EN 60332-2-1 and VDE 0482-332-2-1
Halogen-Free	yes
Resistance to Media	largely resistant to greases, cooling fluids and lubricants. Oil-resistant according to DIN VDE 0473 part 811.
Cable Shielding	yes (Coverage 85%)

Euchner Connecting cable with plug connector M8, 3-pin, 10m Part number 084763
