Euchner Connecting cable with plug connector M23, 19-pin, 10m

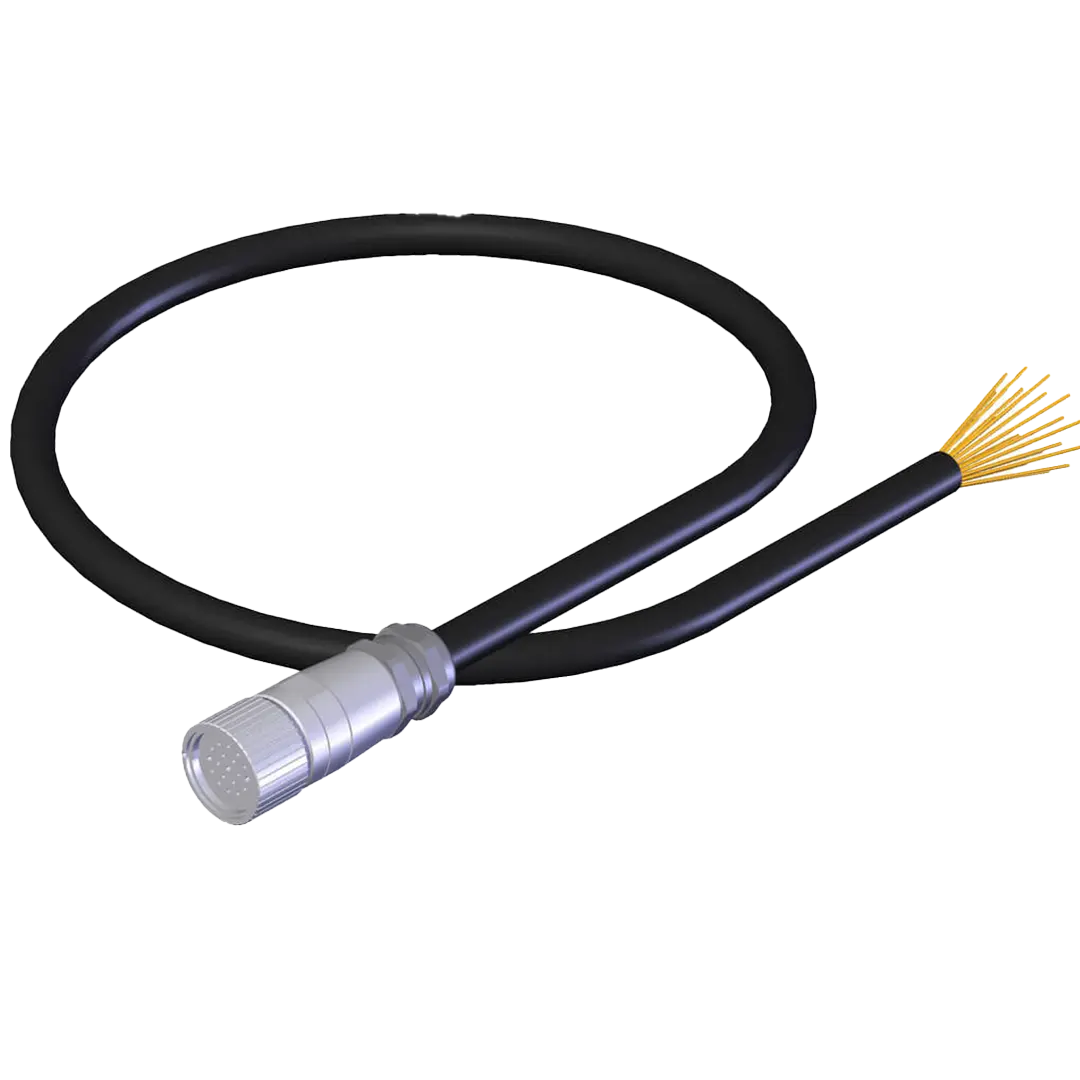

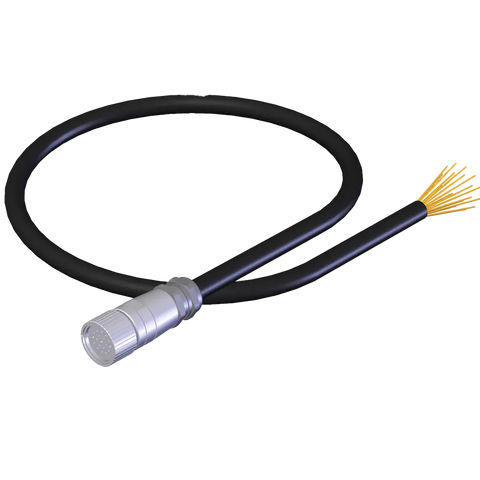

Euchner’s connection cable is connected with a M23 female plug, 19-pin. A straight plug connector. The cable comes in 10m and PUR cable, with cores numbered and is black in colour.

Vendor: Euchner

SKU: 110304

Availability: In stock

Product type: Safety Automation

Please hurry! Only 1 left in stock

Ask an expert

Description
Specifications
Documents

C-M23F19-19XDIFPU10,0-MA-110304 (Order no. 110304)

Connecting cable with plug connector M23, 19-pin, 10 m, straight

M23 female plug, 19-pin
Straight plug connector
PUR cable
Cable length 10 m
With flying lead
Cores numbered, black

C-M23F19-19XDIFPU10,0-MA-110304 (Order no. 110304)

Description

Connector assignment

Pin	Cross-section	Numbering imprinted
1	0.5 mm²	1
2	0.5 mm²	2
3	0.5 mm²	3
4	0.5 mm²	4
5	0.5 mm²	5
6	1.0 mm²	6
7	0.5 mm²	7
8	0.5 mm²	8
9	0.5 mm²	9
10	0.5 mm²	10
11	0.5 mm²	11
12	1.0 mm²	12
13	0.5 mm²	13
14	0.5 mm²	14
15	0.5 mm²	15
16	0.5 mm²	16
17	0.5 mm²	17
18	0.5 mm²	18
19	1.0 mm²	19

Dimensional drawings

1	Female plug with union nut M23, 19-pin, without shield spring
2	Terminal assignment as seen from the plug side

Technical data

Approvals

Electrical connection values

Rated voltage
AC/DC	48 V (48 V AC / 74 V DC)
Test voltage	1.5 kV
Overvoltage category according to IEC EN 60664-1	II
	Connection 1
Degree of contamination according to EN 60664-1	3

Mechanical values and environment

Conductor identification	Numeric code
Conductor cross-section	16x 0.5 mm² + 3x 1 mm²
Number of conductors	19
Dynamic bending radius	10x cable diameter
Fire behavior	flame retardant according to VDE 0472 804
Cable type	straight
Cable diameter	approx. 11.4 mm
Cable length	10 m
Sheath color	black
Drag chain suitability	yes
Cable ambient temperature (dynamic)	-20 to 90 °C
Cable ambient temperature (static)	-40 to 90 °C
Material
Conductor insulation	PVC
Sheath	PUR
Conductor	EL-Cu flexible wire, bare, super fine strands
	Connection 2
Conductor end	Sheath stripped
Connection type	flying lead
	Connection 1
Connection type	Plug connector M23
Connection type	Female plug
Plug connector designation	RC
Cable outlet	straight
Number of pins	19 (16+3)
Degree of protection	IP65/IP67 (locked)
Plug lock	Screw connection
Insertion cycles	50
Material
Plug lock	CuZn, nickel plated
Plug housing	CuZn, nickel plated
