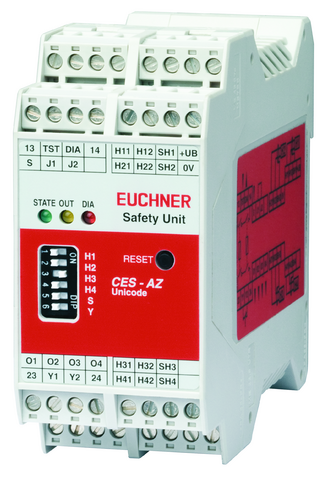

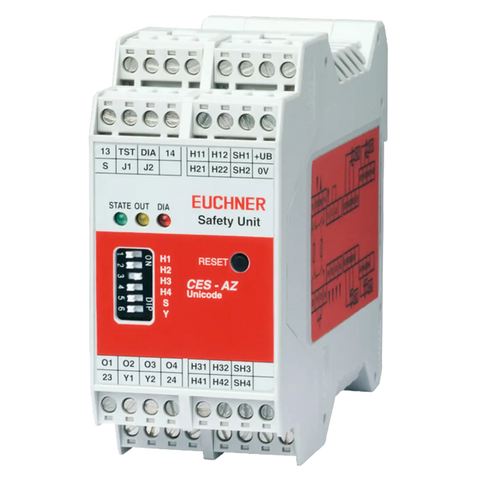

Euchner CES-AZ-UES-04B Evaluation unit for 4 read heads Part number 105141

Euchner's Evaluation unit is a 4 read head that can be connected and 2 safety outputs (relay contacts with 2 internally connected NO contacts per output). The start button and feedback loop can be connected. To further ensure ease of application of the Evaluation unit it has simple Plug-in connection...
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x
Euchner's Evaluation unit is a 4 read head that can be connected and 2 safety outputs (relay contacts with 2 internally connected NO contacts per output). The start button and feedback loop can be connected. To further ensure ease of application of the Evaluation unit it has simple Plug-in connection terminals. Multicode evaluation Plug-in connection terminals.
Specifications
Specifications
x
Number of read headsmax. 4 read heads can be connected
Safety outputs2 safety outputs (relay contacts with 2 internally connected NO contacts per output)
CategoryCategory 4 / PL e according to EN ISO 13849-1
Operating voltage21 ... 24 ... 27 V DC regulated, residual ripple < 5%
Fuse external (operating voltage)0.25 ... 8 A
Connection cross sectionPlug-in screw / spring terminals 0.25 ... 2.5 mm²
Current consumption150 mA (without taking into account the load currents at the monitoring outputs)
Current via feedback loop5 ... 8 ... 10 mA
Degree of contamination2 according to EN 60947-1
Permissible resistance in feedback loopmax. 600 Ω
Temperature range-20 ... +55 °C
Mechanical life10 x 10⁶ operating cycles (relay)
Degree of protectionIP20
Switching frequencymax. 0.25 Hz
Humiditymax. 80 % rH, non-condensing
Ready delay10 ... 12 s
Response timemax. 290 ms (active actuators)
Rated insulation voltage75 V
Rated impulse withstand voltage4 kV
Diagnostic Coverage (DC)99%
