Euchner CES-AZ-UES-01B Evaluation unit for 1 read head - Rubicon Partner Portal

Euchner's Evaluation unit is a 1 read head that can be connected and 2 safety outputs (relay contacts with 2 internally connected NO contacts per output). The start button and feedback loop can be connected. To further ensure ease of application of the Evaluation unit it has simple Plug-in connection...

Vendor: Euchner

SKU: 105139

Availability: In stock

Product type: Safety Automation

Please hurry! Only 1 left in stock

Ask an expert

Description
Specifications
Documents

CES-AZ-UES-01B (Order no. 105139)

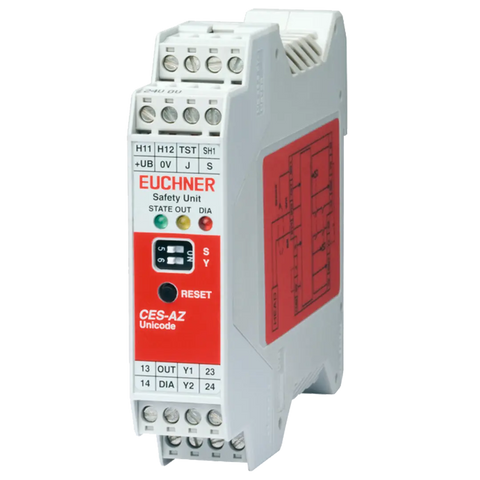

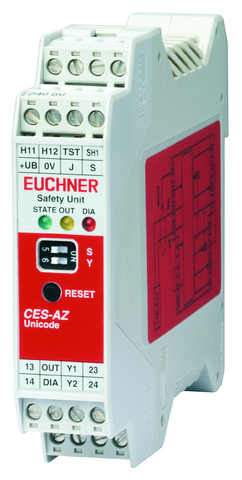

Evaluation unit CES-AZ-UES-01B (for 1 read head)

1 read head can be connected
2 safety outputs (relay contacts with 2 internally connected NO contacts per output)
Start button and feedback loop can be connected
Multicode
Plug-in connection terminals
Category 4 / PL e according to EN ISO 13849-1

Description

Multicode evaluation

Every suitable actuator is detected by the evaluation unit.

Guard lock monitoring

Evaluation units in the series CES-AZ make it possible to use read heads with integrated guard locking for the protection of personnel during overtraveling machine movements. You will find suitable read heads in the accessories.

Category according to EN ISO 13849-1

Due to two redundant safety paths (relay contacts) with 2 internal, monitored normally open contacts per safety path, suitable for:

Category 4 / PL e according to EN ISO 13849-1

Each safety path is independently safe.

LED indicator

STATE	Status LED
DIA	Diagnostics LED
OUT	Safety output status

Additional connections

TST	Input for self-test
O1	Monitoring output (semiconductor)
DIA	Diagnostic output
Y1, Y2	Feedback loop
S	Start button connection (monitoring of the falling edge)

Important: The plug-in connection terminals are not included and must be ordered separately.

Technical data

Approvals

Images of approvals:

Workspace

Repeat accuracy R	according to EN 60947-5-2	max. 10 %

Operating and display elements

LED display	Safety contacts status
Status LED
Diagnostics LED

Electrical connection values

Fuse	external (operating voltage UB)	0.25 to 8 A
Connection cross section	Plug-in screw / spring terminals	0.25 to 2.5 mm²
Operating voltage DC	UB	21 / 24 / 27 V DC regulated, residual ripple<5%
Current consumption	(with relay energized)	150 mA (without taking into account the load currents at the monitoring outputs)
Current via feedback loop		5 / 8 / 10 mA
Degree of contamination	(external, according to EN 60947-1)	2
Permissible resistance in feedback loop		max. 600 Ω

Mechanical values and environment

Connection type	plug-in connection terminals, coded (Terminals not included)
Number of read heads	1 read head can be connected
Ready delay	10 to 12 s
Switching frequency	max. 0.25 Hz
Atmospheric humidity	not condensing	max. 80 % rH
Mounting distance	between evaluation units	min. 10 mm
Mounting type	TH 35 mounting rail (EN IEC 60715)
Response time	Start button response delay (for Manual start operating mode)	200 to 300 ms
Degree of protection	IP20
Ambient temperature	with UB = 24 V DC	-20 ... +55 °C
