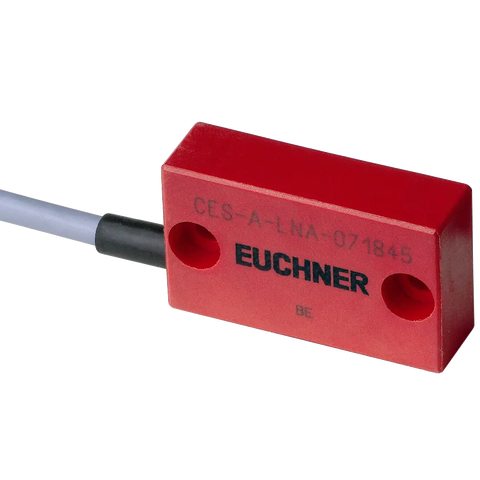

Euchner CES-A-LNA-15P Read head, hard-wired cable 15m, PUR

Euchner's Read head CES-A-LNA is cube-shaped and designed to fit small spaces with its compact dimensions of 40 x 25mm. The cable is Hard-wired encapsulated cable made of PUR and comes in 15m lengths. to further ensure safety within the system 2x safety screws M14x14 are included. Housing material is Fortron, reinforced thermoplastic, fully encapsulated. The actuating range may vary depending on the substrate material and installation situation. Kindly note, Actuators must be ordered separately. The typical Actuator range for a side approach direction for the actuator and a read head, a minimum distance of s=3mm must be maintained so that the actuating range of the side lobes is not entered.
