Euchner CES-A-LNA-05P Read head, hard-wired cable 5m, PVC Part number 077806

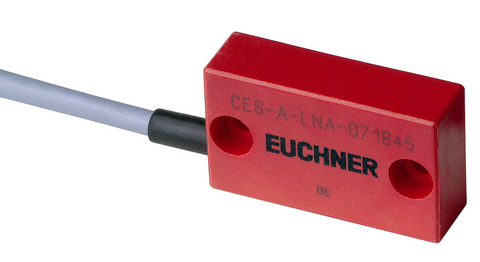

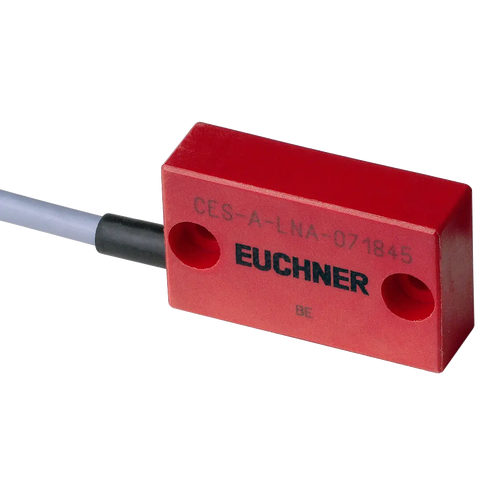

Euchner's Read head CES-A-LNA is cube-shaped and designed to fit small spaces with its compact dimensions of 40 x 25mm. The cable is Hard-wired encapsulated cable made of PVC and comes in 5m lengths. to further ensure safety within the system 2x safety screws M14x14 are included.
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x
Euchner's Read head CES-A-LNA is cube-shaped and designed to fit small spaces with its compact dimensions of 40 x 25mm. The cable is Hard-wired encapsulated cable made of PVC and comes in 5m lengths. to further ensure safety within the system 2x safety screws M14x14 are included.
Specifications
Specifications
x
DesignCube-shaped
Dimensions42 x 25 mm
Cable Length5 m
Cable MaterialPUR
Connection Typehard-wired encapsulated connecting cable
Tightening Torque of Fixing Screwsmax. 1 Nm
Installation Orientationany
Maximum Cable Lengthmax. 25 m
Degree of ProtectionIP67/IP69K
Cable Ambient Temperature (Dynamic)-5 ... +70 °C
Cable Ambient Temperature (Static)-25 ... +70 °C
Housing MaterialReinforced thermoplastic (PPS), fully encapsulated
Method of Operationinductive
Electrical Connectionvia evaluation unit
Documents
Documents
x
Download Datasheet
