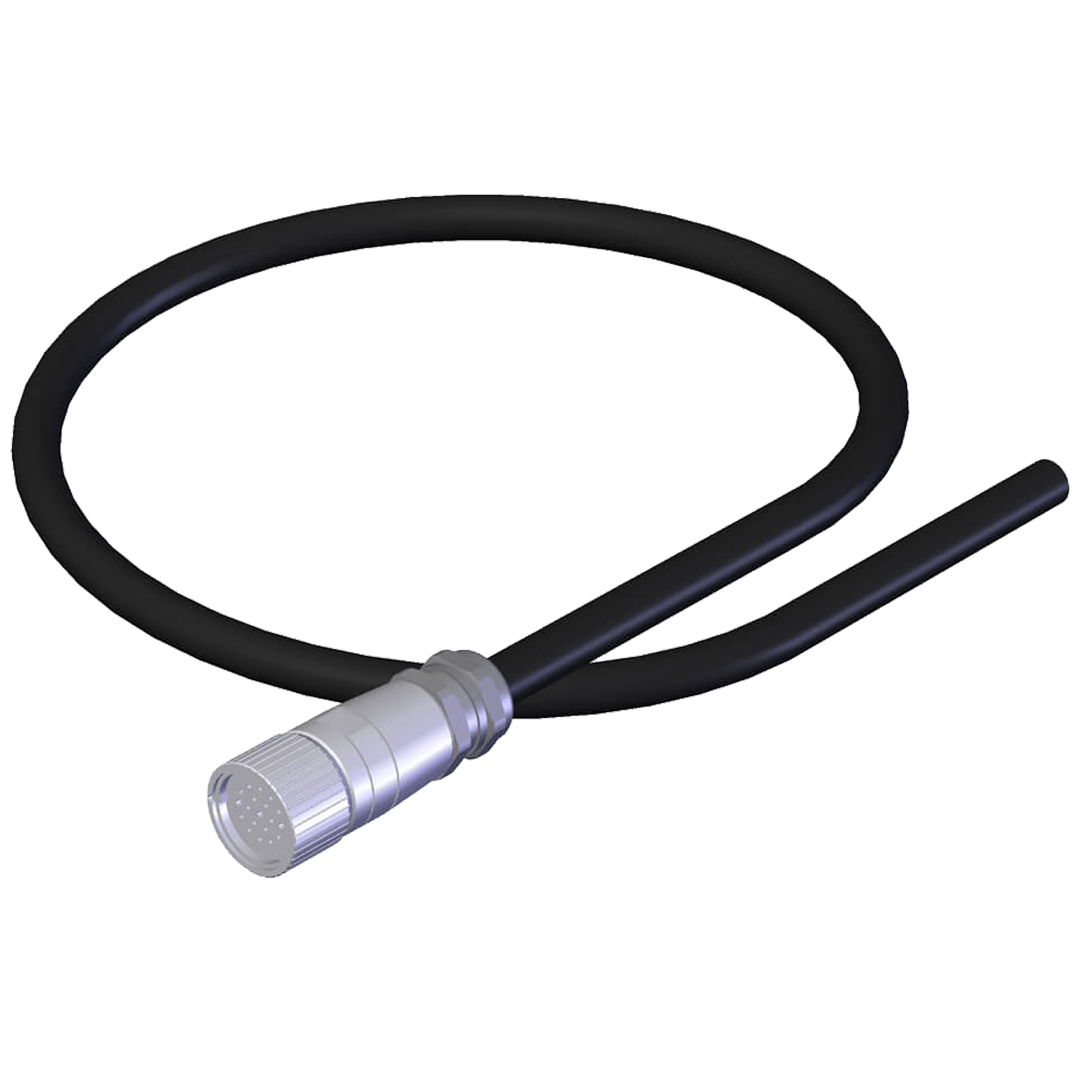

Euchner Connecting cable with plug connector M23, 10m, straight Part number 092898

Euchner's connection cable with plug connector M23, 18 pin +PE. The plug connector is straight with a 10 m PUR cable length. The cores are also colour-coded.
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: Out Of Stock
Product type: Safety Automation
Please hurry! Only 0 left in stock
Description
Description
x
Euchner's connection cable with plug connector M23, 18 pin +PE. The plug connector is straight with a 10 m PUR cable length. The cores are also colour-coded.
Specifications
Specifications
x
Cable TypePUR
Cable Length10 m
Number of Conductors19
Conductor Cross-section16 x 0.5 mm² / 3 x 1 mm²
Rated Voltage150 V
Test Voltage1.5 kV
Overvoltage CategoryII
Degree of Contamination3
Dynamic Bending Radius10x cable diameter
Fire BehaviorFlame retardant according to DIN EN 60332-1-2
Cable Diameterapprox. 10.4 mm
Sheath ColorBlack
Cable Ambient Temperature (Dynamic)-20 ... +80 °C
Cable Ambient Temperature (Static)-20 ... +80 °C
Conductor Insulation MaterialPP
Sheath MaterialPUR
Conductor MaterialCu flexible wire, bare, super fine strands
Degree of ProtectionIP65/IP67 (locked)
Insertion Cycles50
Material of Plug LockCuZn, nickel plated
Documents
Documents
x
Download Datasheet
