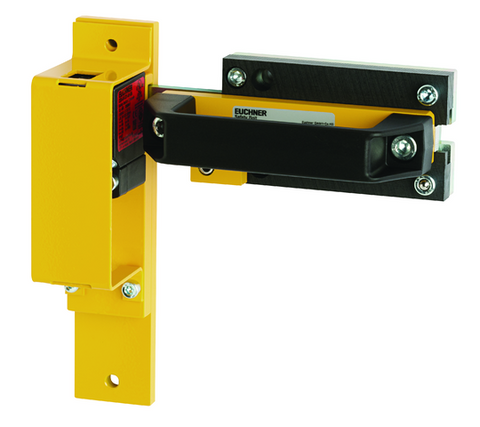

Euchner Bolt with safety switch, 24VDC Euchner
Euchner Bolt with safety switch, 24VDC Euchner

Euchner Bolt with safety switch, 24VDC Part number 109358

This Euchner bolt with integrated safety switch operates at 24VDC and is designed for mounting on guarded doors or movable panels within safety automation systems. It accepts approach from direction A or C and can be fitted with one safety switch, with an escape release feature for personnel safety. Construction...
Vendor: Euchner
Rubicon Industrial Technology is the exclusive South African distributor for Euchner.
Availability: In stock
Product type: Safety Automation
Please hurry! Only 1 left in stock
Description
Description
x

This Euchner bolt with integrated safety switch operates at 24VDC and is designed for mounting on guarded doors or movable panels within safety automation systems. It accepts approach from direction A or C and can be fitted with one safety switch, with an escape release feature for personnel safety. Construction includes plastic guide strips, a galvanized steel base plate, a powder-coated steel switch bracket and a plastic handle, suiting installation in industrial machine guarding applications.

Specifications
Specifications
x

RIEGEL CES-AC-AR-C01-AH-SA-C2296 (Order no. 109358)

PDF

Bolt for safety switch CES-C01

  • Bolt for switch CES-C01
  • Steel bolt
  • For doors hinged on the left or right
  • Ball detent mechanism in closed position
  • Suitable for a door gap of approx. 7 mm
  • Protective plate for safety switch

Description

Latching in closed position

Bolt latches in closed position and prevents unintentional opening of the bolt. Ball or spring detent mechanisms are opened by overcoming the spring force.

Door types and door hinges

Suitable for hinged or sliding doors. Suitable for doors hinged on the left or right. Without door stop, door can be opened inwards and outwards.

Protective plate

The protective plate protects the switch against damage.

Integrated lockout bar

With the aid of the integrated lockout bar, the bolt can be secured in the open position, e.g. using padlocks. It is possible to prevent people from being locked in the danger area unintentionally.

Technical data

Mechanical values and environment

Approach direction A or C
Number of safety switches that can be mounted 1
Escape release yes
Material
Guide strips Plastic
Base plate Galvanized steel
Switch bracket Steel powder-coated
Handle Plastic

Shipping Details

Gross weight 2,133kg
Customs tariff number 83014090000
