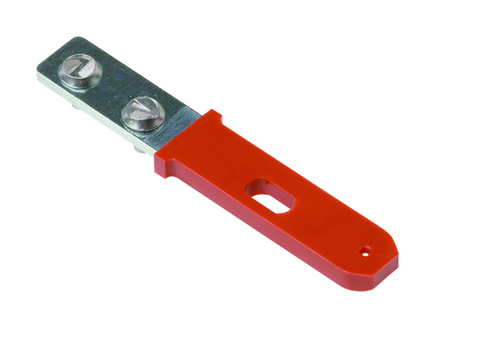

Euchner BETAETIGER-Z-G Actuator for safety switches
Euchner BETAETIGER-Z-G Actuator for safety switches

Euchner BETAETIGER-Z-G Actuator for safety switches

CET3-AR-CRA-AH-50X-SG-016849 Transponder-coded safety switch with guard locking, guard lock actuator, unicode coding, guard locking by spring force, release by applying voltage, 2 safety outputs, 1 monitoring output, 1 door monitoring output, 1 solenoid monitoring output, connection via M12 plug connector, 8-pin
Vendor: Euchner
SKU: 016849
Availability: In stock
Product type: Safety Automation
Please hurry! Only 8 left in stock
Ask an expert
Description
Description
x

CET3-AR-CRA-AH-50X-SG-016849

Transponder-coded safety switch with guard locking, guard lock actuator, unicode coding, guard locking by spring force, release by applying voltage, 2 safety outputs, 1 monitoring output, 1 door monitoring output, 1 solenoid monitoring output, connection via M12 plug connector, 8-pin

Specifications
Specifications
x

General

StandardsEN ISO 13849-1:2015, EN ISO 14119:2013
ApprovalCE, EAC, TÜV, UKCA
Suitable forCET-A-BWK-50X actuator

Mechanical values

Approach speed, max.20 m/min
Locking force FZh2000 N
Retention force30 N
Service life1 x 10⁶ operating cycles

Electrical data

Operating voltage UBDC 24 V -15% / +10% (PELV)
Current consumption IB40 mA
External fuse0.5 A slow-blow
Rated insulation voltage Ui32 V
Rated impulse withstand voltage Uimp1.5 kV
Reliability values as per EN ISO 13849-1:2015Category 4, Performance Level e

Outputs

Safety outputs2 semiconductor outputs, p-switching, short circuit-proof
Switching elementTransponder
Output voltage0.8 x UB ... UB
Output current1 ... 200 mA

LED indicator

State display3-color LED

Connection

Type of connectionM12 plug connector, 8-pin

Ambient conditions

Ambient temperature-20 ... +55 °C
Storage temperature-20 ... +70 °C
Protection classIP67

Mechanical data

Dimension135 x 31 x 31 mm
MaterialReinforced thermoplastic / Die-cast aluminum
Mass0.21 kg
Documents
Documents
x
Download Datasheet
