AC-YD-V0,2-SBB-124516 (Order no. 124516)

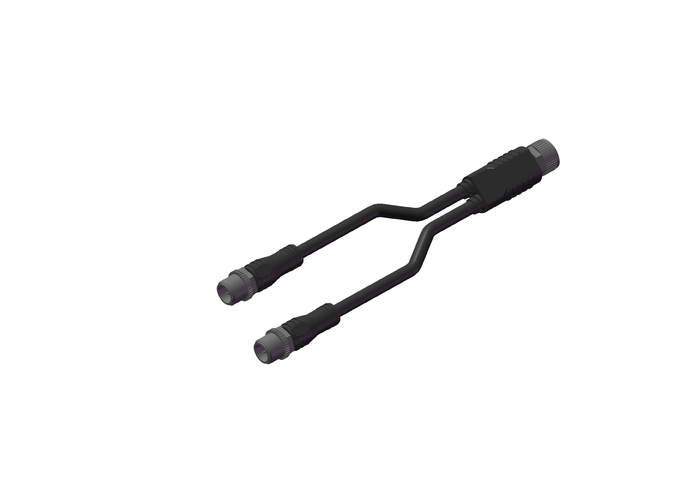

Y-distributor M12 with connecting cable, 5-pin

Y-distributor M12 with connecting cable, 5-pin
Straight plug connector
PVC cable
Cable length 0.29 m

AC-YD-V0,2-SBB-124516 (Order no. 124516)

Description

Dimension drawing

Wiring diagram

Dimensional drawings

Connection examples

A	Plug A
B	Plug B
C	Contact carrier black
D	Contact carrier red
E	Socket

Technical data

Electrical connection values

Rated insulation voltage Ui	300 V
Rated voltage	60 V
Rated surge voltage according to IEC 60664-1	1500 V
Contact resistance	=5 mO
Nominal current
at 40 °C	4 A
Degree of contamination according to EN 60664-1	3

Mechanical values and environment

Type specification	DIN EN 61076-2-101
Cable length	approx. 0.29 m
Sheath color	black
Degree of protection	IP65/IP67 (Only in the screwed tight state with the relating mating components.)
Insertion cycles	100
Ambient temperature	-25 to 80 °C
Material
Cable sleeve	PVC
Plug housing	TPU, self-extinguishing
Contact	CuZn, nickel and gold plated
Plug contact carrier	TPU, self-extinguishing
Coupling contact carrier	TPU GF, self-extinguishing
Plug lock	CuZn, nickel plated
Connection type	1 x plug connector M12
Connection type	Female plug
Cable outlet	straight
Number of pins	5
Degree of protection	IP67 (screwed tight with the related mating pieces)
Plug lock	Screw terminal
Connection type	Male plug
