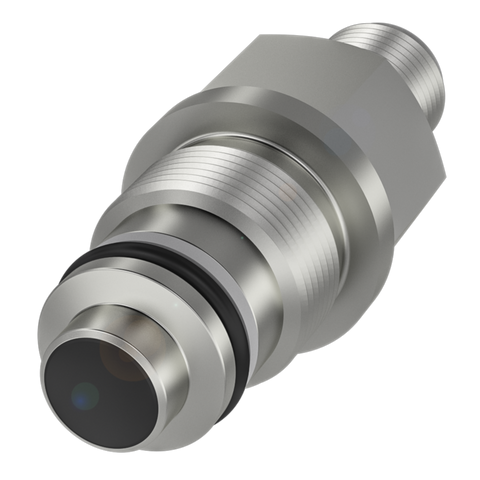

Balluff Pressure-rated inductive sensor, PNP, NO, M18 M12 4-pin Part number BHS004J

This M18 inductive sensor from Balluff detects the presence of metal targets at a rated operating distance of 1.5mm, providing a PNP normally open switching output. Housed in stainless steel with an IP68 rating, it is designed for flush mounting in applications where exposure to moisture or washdown conditions is expected. The M12x1 4-pin A-coded connector allows straightforward integration into control panels and machine wiring, and the sensor operates across a 10-30 VDC supply range with a switching frequency of 2000 Hz.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 75 VDC
• Connection: M12x1-Male / 4-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
