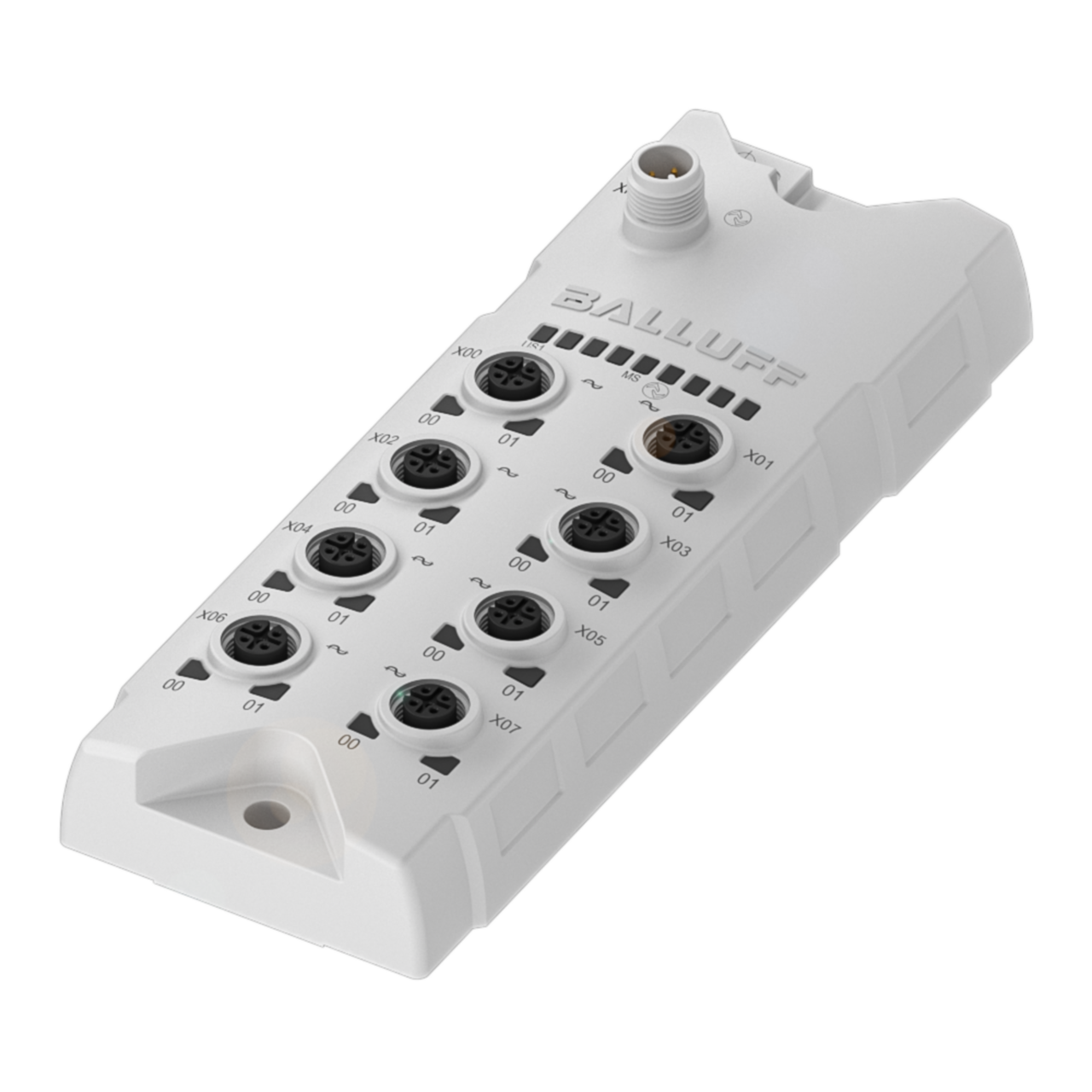

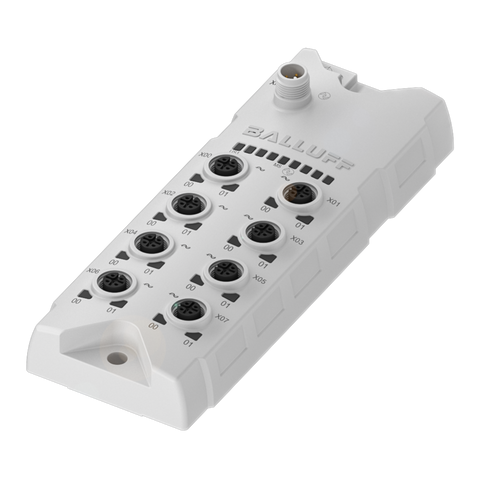

Balluff IO-Link sensor/actuator hub, male, 4-pin / female, 5-pin Part number BNI00FA

This hub provides one M12, 4-pin male connection for the IO-Link master link and eight M12, 5-pin female A-coded ports for connecting sensors or actuators, operating on 18-30.2 VDC via IO-Link 1.1. The housing and grip are moulded in PPS with an FKM gasket, and the unit is rated IP68 and IP69K when correctly threaded in. It is intended for distributing IO-Link connectivity to multiple field devices within a machine or panel installation, in environments requiring a sealed, washdown-resistant connection point.

Key specifications

• IP rating: IP68, IP69K, when threaded in
• Operating voltage: 18 - 30.2 VDC
• Connection: Connection 1; M12x1 / Male / 4-pin / A-coded - Connection slots 8x; M12x1 / Female / 5-pin / A-coded
