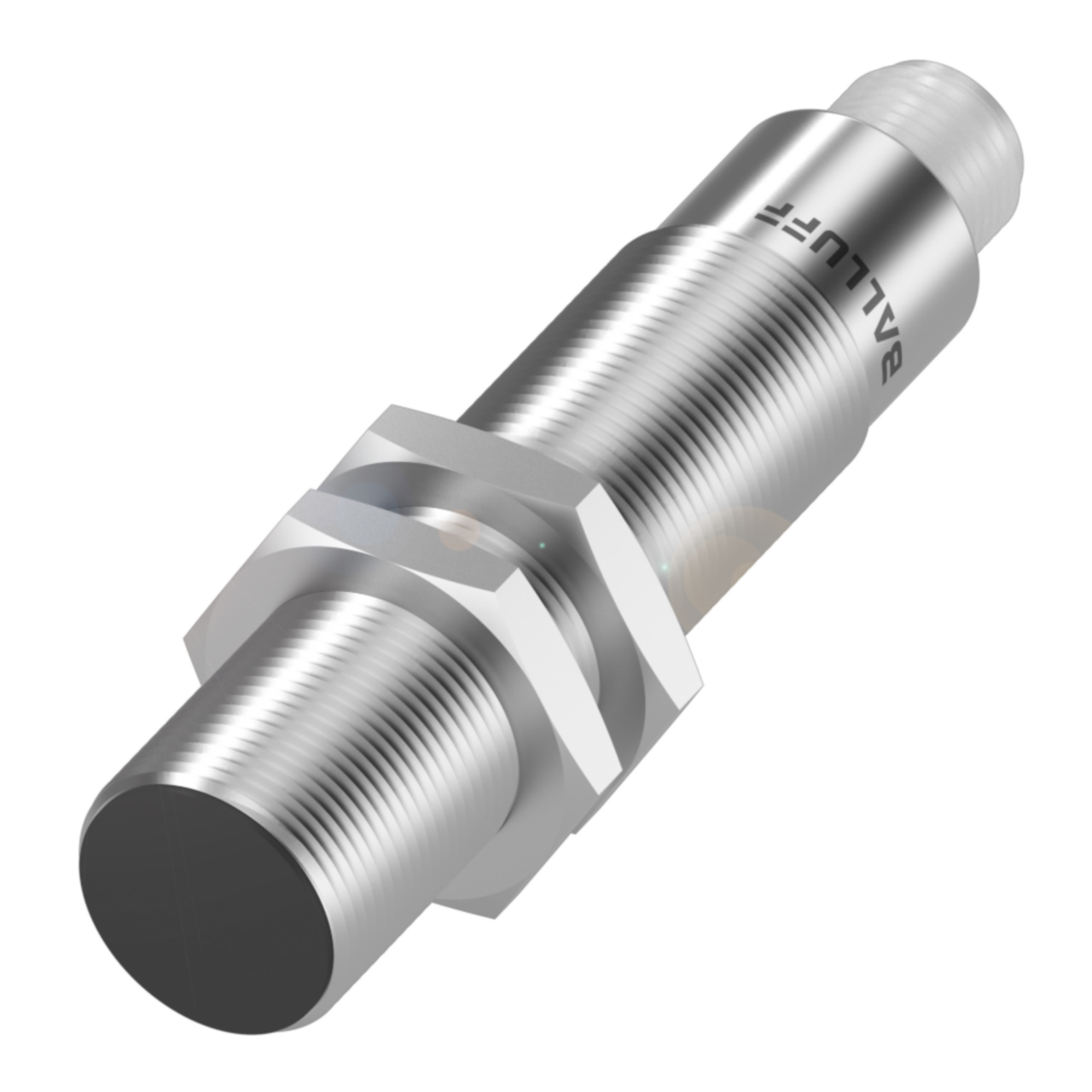

Balluff Inductive standard sensor, PNP, NO/NC, M18, flush, M12 4-pin Part number BES02H6

This inductive sensor is an M18 threaded unit with a brass, nickel-plated housing and PBT sensing face, rated IP67 for use in demanding industrial environments. It provides a PNP output with selectable NO/NC switching, a rated operating distance of 5 mm, and operates from 10 to 30 VDC, connecting via an M12, 4-pin male A-coded connector. Typical applications include position and proximity detection on automation panels and machinery where reliable metal-object sensing is required.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open/normally closed (NO/NC)
• Mounting: Non-flush mounting
