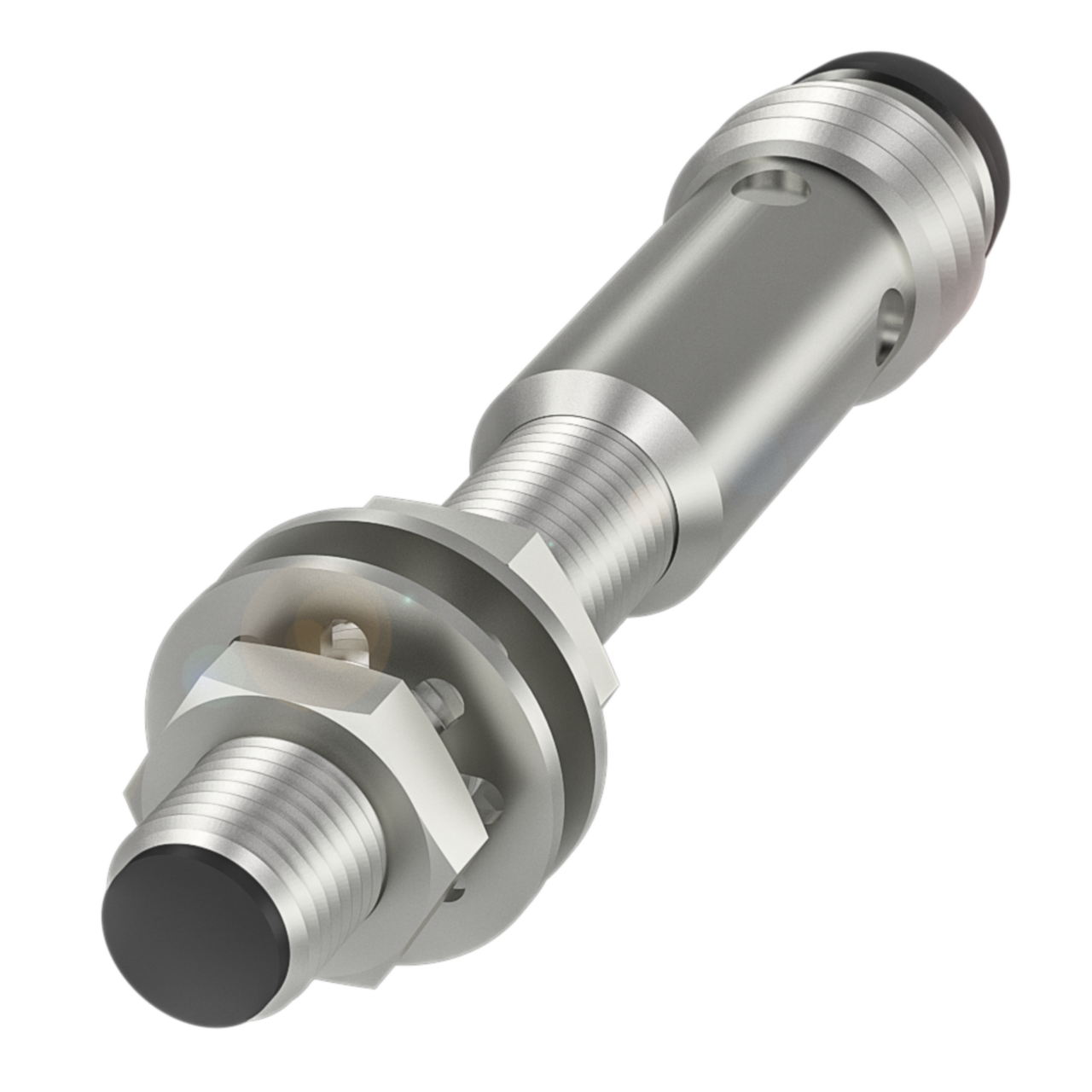

Balluff Inductive standard sensor PNP, NO, M5, flush, M8 3-pin Part number BES00H2

This inductive sensor is a compact M5 stainless steel unit designed for flush mounting, with a sensing range of 0.8 mm and PNP normally open switching output. It connects via an M8x1 male 3-pin connector and operates from 10...30 VDC, making it suitable for integration into standard automation control circuits. Rated IP67 with an ambient temperature range of -25...70 °C, it is suited to industrial environments requiring compact, flush-mounted proximity detection, such as machine and panel-mounted position sensing applications.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Connector, M8x1-Male, 3-pin
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: Ø 5 x 41 mm
