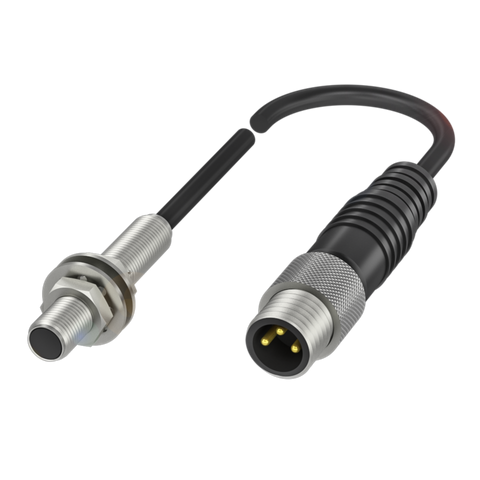

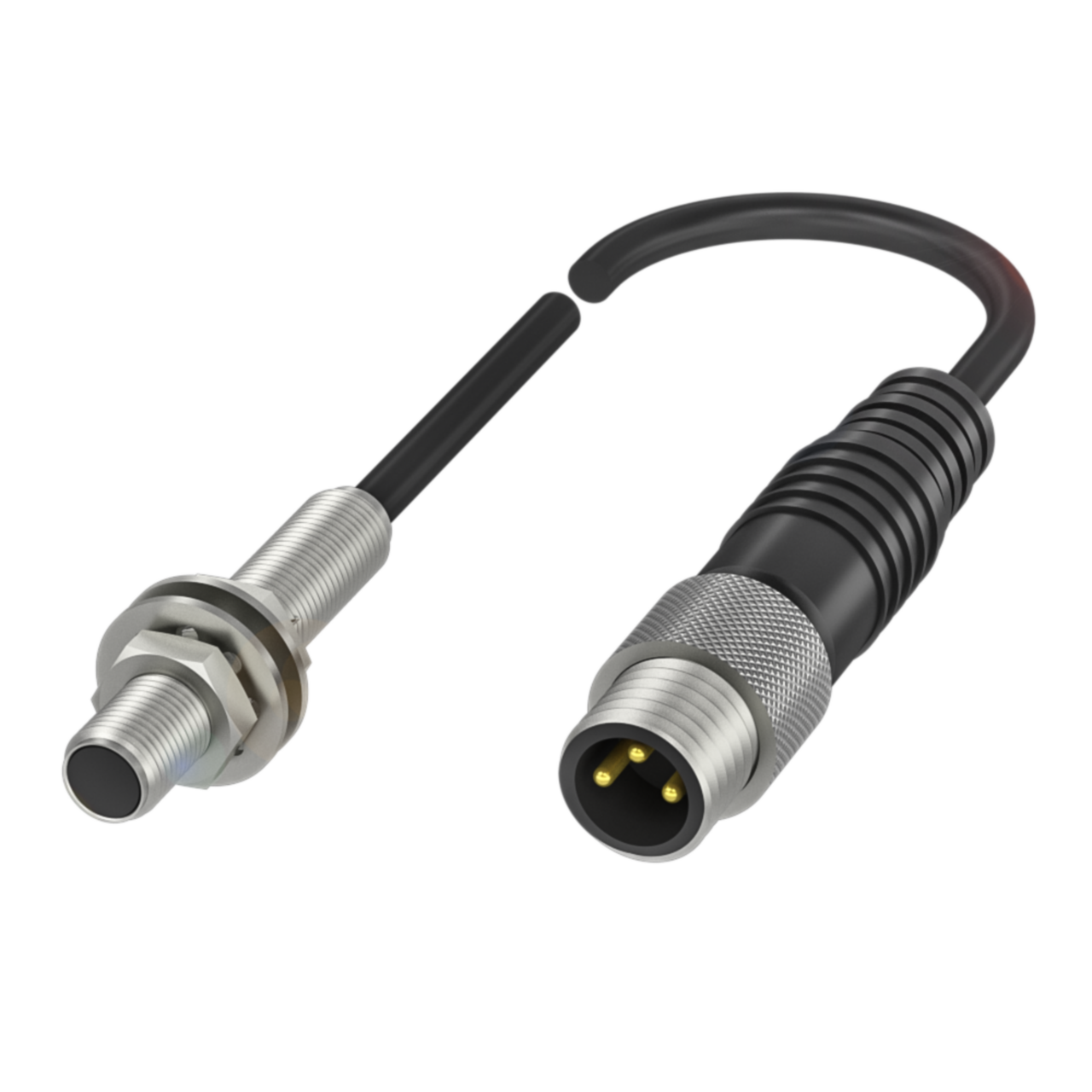

Balluff Inductive standard sensor, PNP, NO, M5, flush, M8 3-pin Part number BES00HA

This inductive sensor is an M5 flush-mount device with a PNP normally open output, designed for detecting metal targets at a rated operating distance of 1.5 mm. Its stainless steel housing and IP67 rating suit installations exposed to washdown or contaminated environments, while the M8, 3-pin connector with a 0.20 m PUR cable simplifies field wiring. Operating from 10 to 30 VDC, it is typically used in compact automation and machine-building applications where space around the sensing face is restricted.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally open (NO)
• Mounting: Flush mounting
