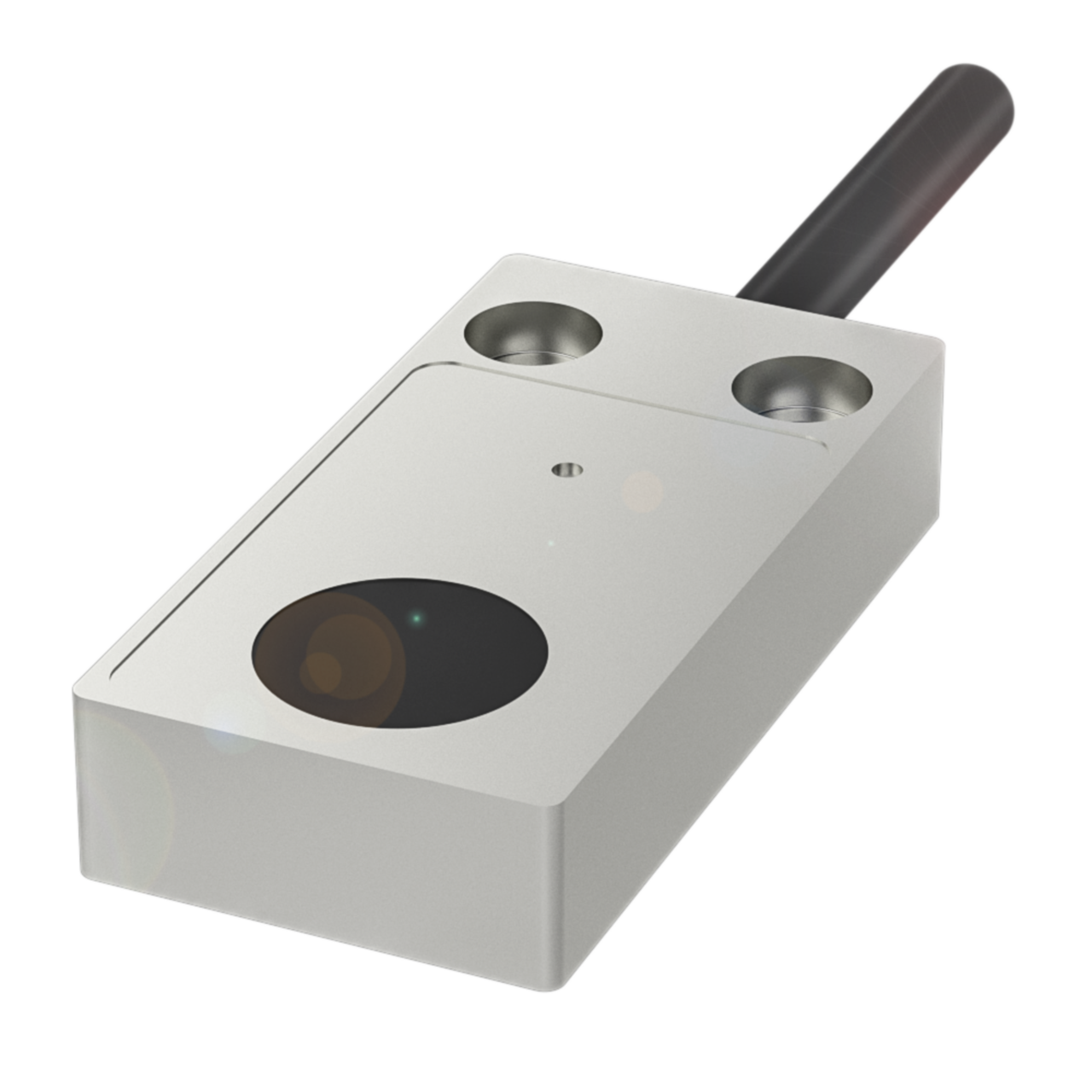

Balluff Inductive standard sensor, PNP, NO, flush, 3m PUR Part number BES01FL

This inductive sensor detects the presence of metal targets without physical contact, switching a PNP normally-open output when a target enters its rated operating distance of 5mm. The flush-mount aluminium housing allows installation level with surrounding metalwork, with an IP67-rated enclosure and a 3m PUR cable for direct connection into the control cabinet. It operates from a 10-30 VDC supply and is suited to automation panels and machinery where compact, flush-fitting proximity detection is required.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: Cable, 3.00 m, PUR
• Output: PNP normally open (NO)
• Mounting: Flush mounting
