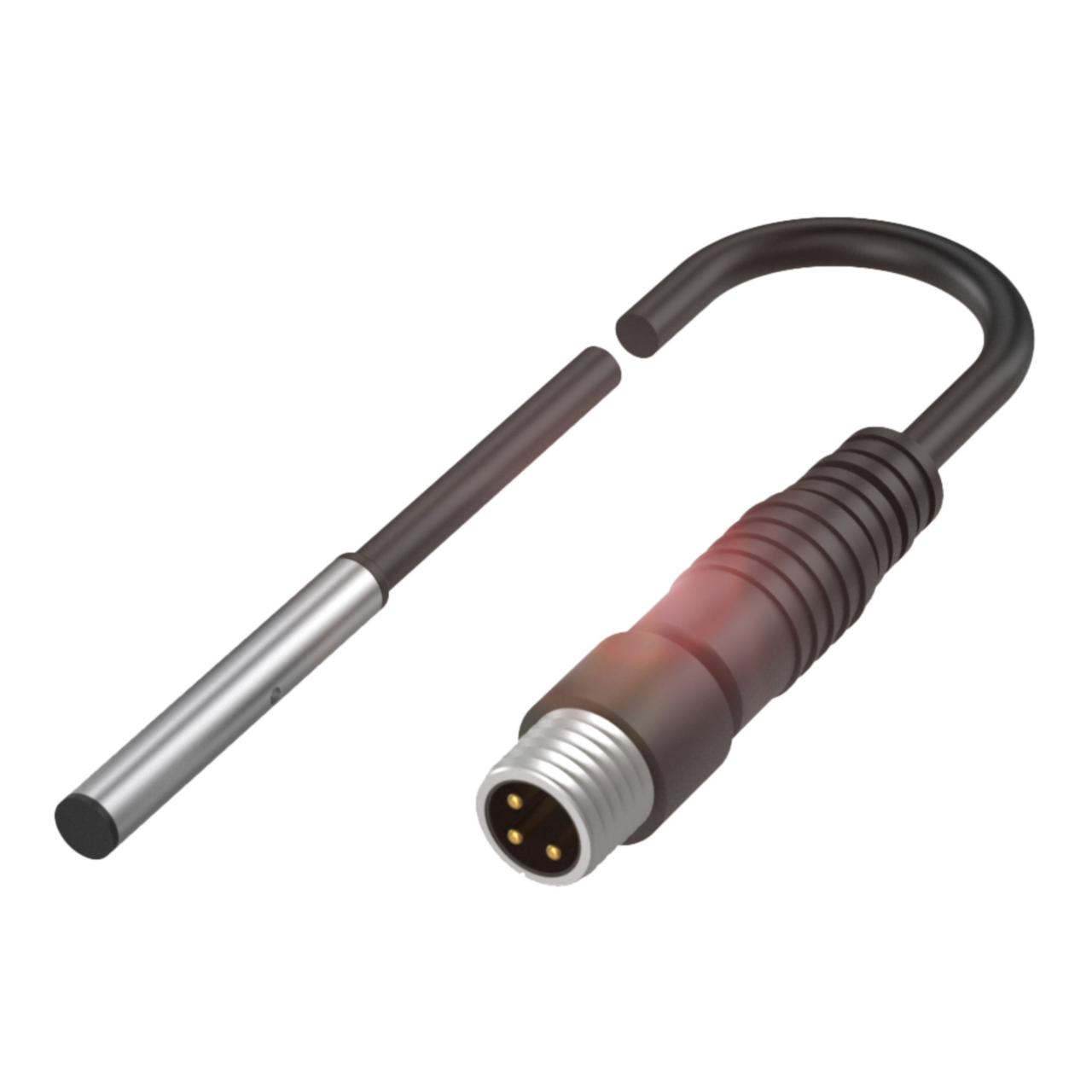

Balluff Inductive standard sensor, PNP, NO, D4.0, flush, M8 3-pin Part number BES00JK

This inductive sensor detects the presence of metal targets without physical contact, switching a PNP normally open output when an object enters its rated operating distance of 1.5mm. Its flush mounting design and D4.0 size suit installation in confined machine frames or panels where the sensor face sits level with the mounting surface. The stainless steel housing and IP67 rating allow use in washdown or contaminated industrial environments, with an M8x1 three-pin connector and 500mm PUR cable for panel wiring.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally open (NO)
• Mounting: Flush mounting
