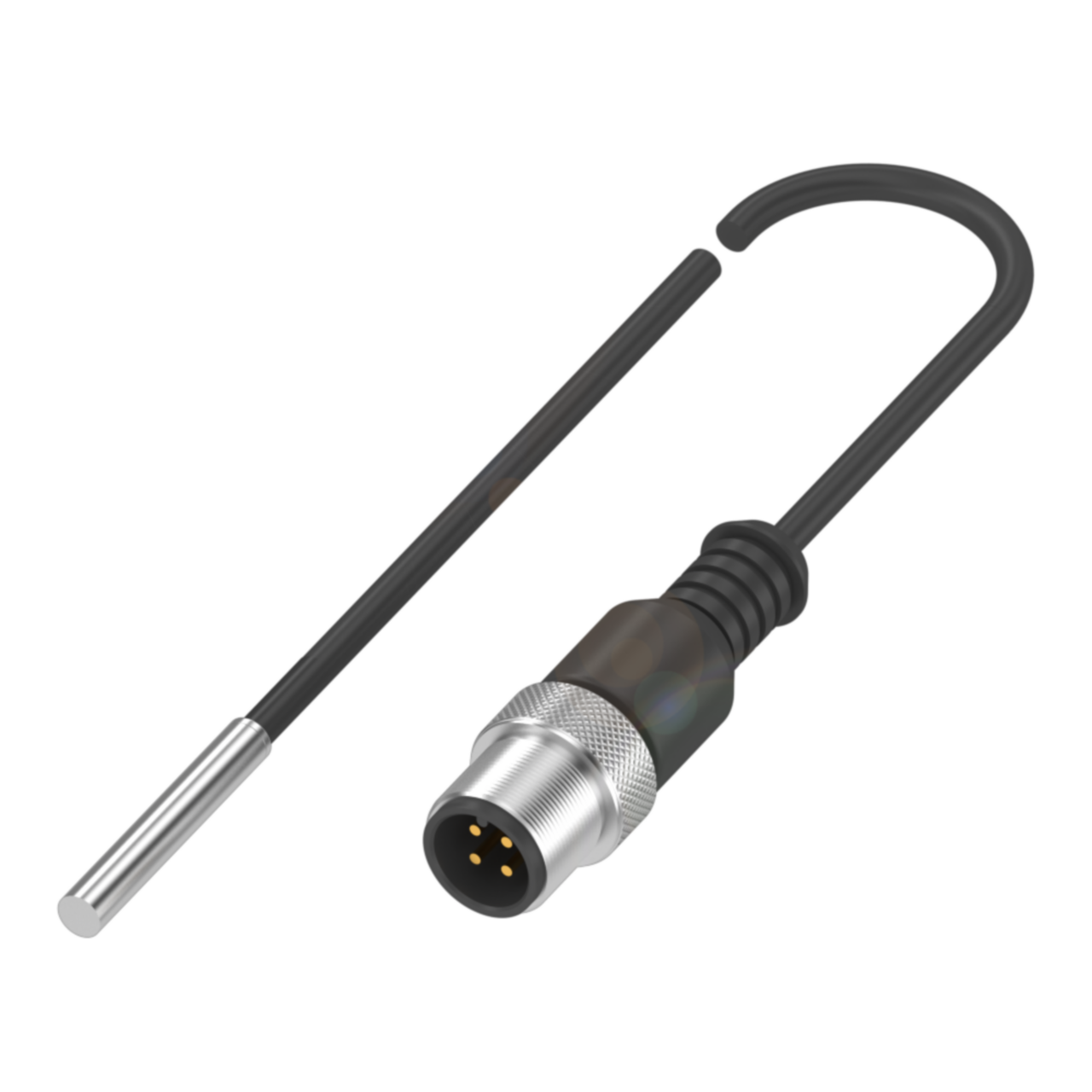

Balluff Inductive standard sensor, PNP, NO, D4.0 flush, M12 4-pin Part number BES00J9

This inductive sensor detects the presence of metal targets at a rated operating distance of 1.5mm and provides a PNP normally open output. Its flush mounting configuration and 4mm diameter, stainless steel housing suit compact installations where the sensor is mounted level with surrounding material, such as small automation panels or machine components. Connection is made via an M12x1, 4-pin, A-coded male connector, with an IP67 rating and PUR jacket supporting use in washdown or contaminated environments.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1-Male / 4-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
