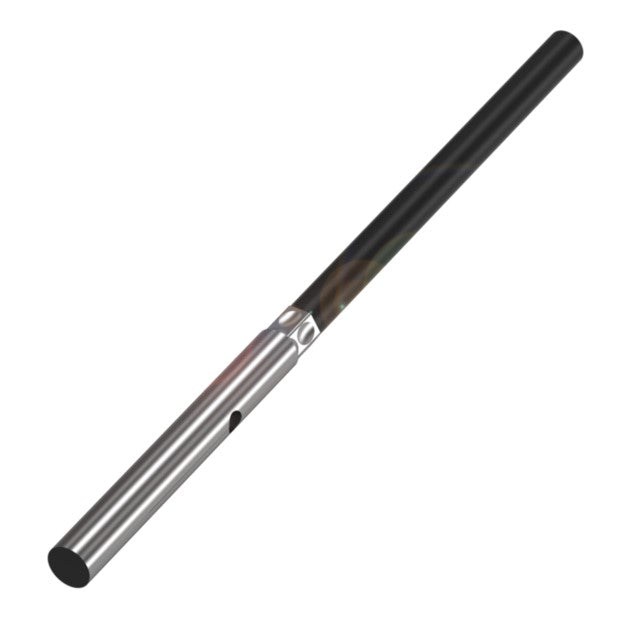

Balluff Inductive standard sensor, PNP, NO, D3.0, flush, 5m PUR Part number BES00M4

This is an inductive proximity sensor with a 3 mm diameter housing in stainless steel, designed for flush mounting and detecting targets at a rated operating distance of 1 mm. It provides a PNP normally open output, operates from 10 to 30 VDC, and is fitted with a 5 m PUR cable for direct connection into the control system. The IP67 rating and stainless steel housing suit installation in industrial environments where exposure to dust and moisture is expected.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: Cable, 5.00 m, PUR
• Output: PNP normally open (NO)
• Mounting: Flush mounting
