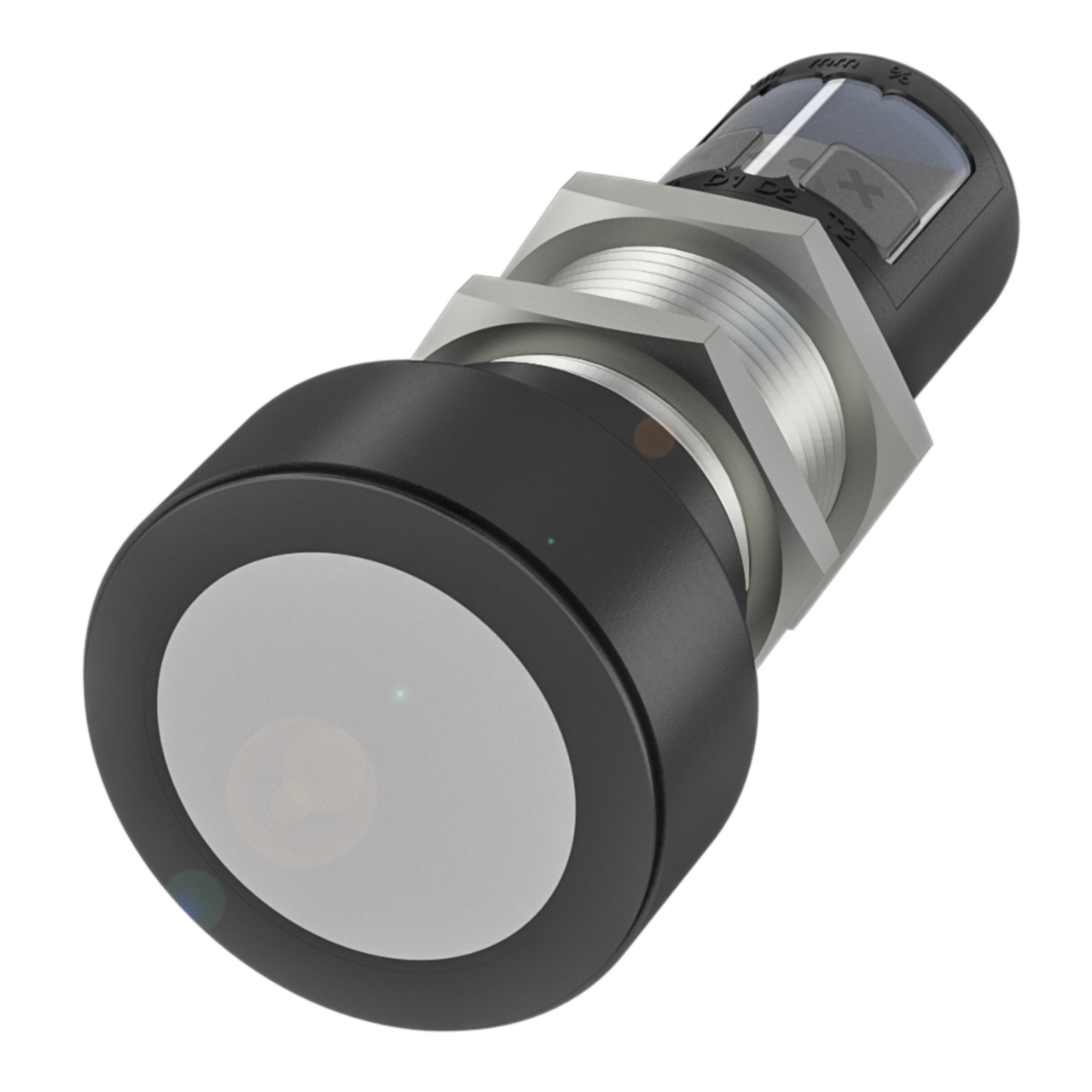

Balluff BUS M30E1-XC-35/340-S92K Ultrasonic sensor, analog output
Balluff BUS M30E1-XC-35/340-S92K Ultrasonic sensor, analog output

Balluff BUS M30E1-XC-35/340-S92K Ultrasonic sensor, analog output

This ultrasonic sensor offers precise distance measurement with a range of up to 5000 mm. It features an analog output and adjustable response delay, making it ideal for high-accuracy applications in environments with temperatures ranging from -25°C to 70°C, and provides IP67 protection.
Vendor: Balluff
SKU: BUS003M
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 1 left in stock
Ask an expert
Description
Description
x

This ultrasonic sensor offers precise distance measurement with a range of up to 5000 mm. It features an analog output and adjustable response delay, making it ideal for high-accuracy applications in environments with temperatures ranging from -25°C to 70°C, and provides IP67 protection.

Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationscULus CE WEEE UKCA
Material: Housing / GripPBT / Stainless steel / TPU
Material: Sensing Surface / ContactsEpoxy resin / Glass / PU foam
Part Length (mm)113.2mm
Part Diameter (mm)47.5mm
Connection TypeM12x1 / Male / 5-pin
Rated Operating Distance (mm)3400mm
Operating Voltage 9 - 30 VDC
Mounting TypeNut M30x1.5
Documents
Documents
x
Download Datasheet
