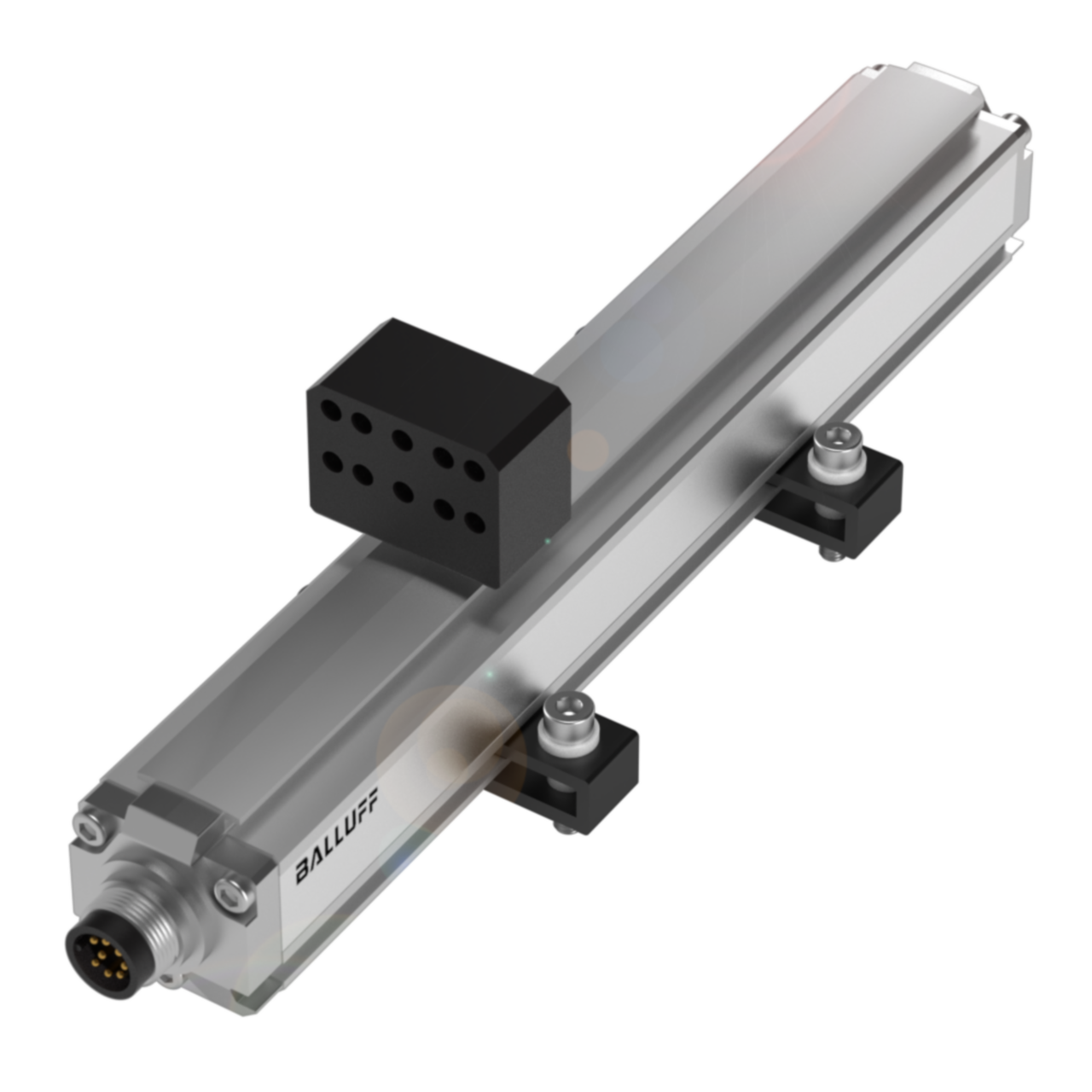

Balluff BTL7-G501-M0100-P-S32 Transducer, 100mm stroke, M6, 8-pin Part number BTL2J8W

The BTL7-G501-M0100-P-S32 is a linear position transducer with a 100 mm measuring stroke, designed for direct integration into automation systems requiring accurate position feedback. It features an anodized aluminium housing with an aluminium die-cast, nickel-plated jacket, and connects via an 8-pin M12x1 connector, operating on a supply of 10-30 V with a current consumption of 150 mA. With an IP68 rating and CE, UKCA, cULus and WEEE compliance, it is suited to industrial environments where exposure to dust, moisture or washdown conditions is expected, such as within hydraulic cylinders or machine panels requiring reliable stroke measurement.

Key specifications

• IP rating: l = KA: IP68
• Operating voltage: 10 - 30 V
• Connection: Connector / Cable (PUR) - M16x0.75 connector with 8 pins / M12x1 connector with 8 pins
