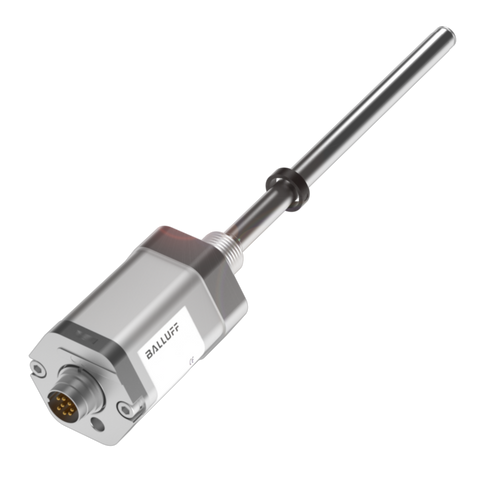

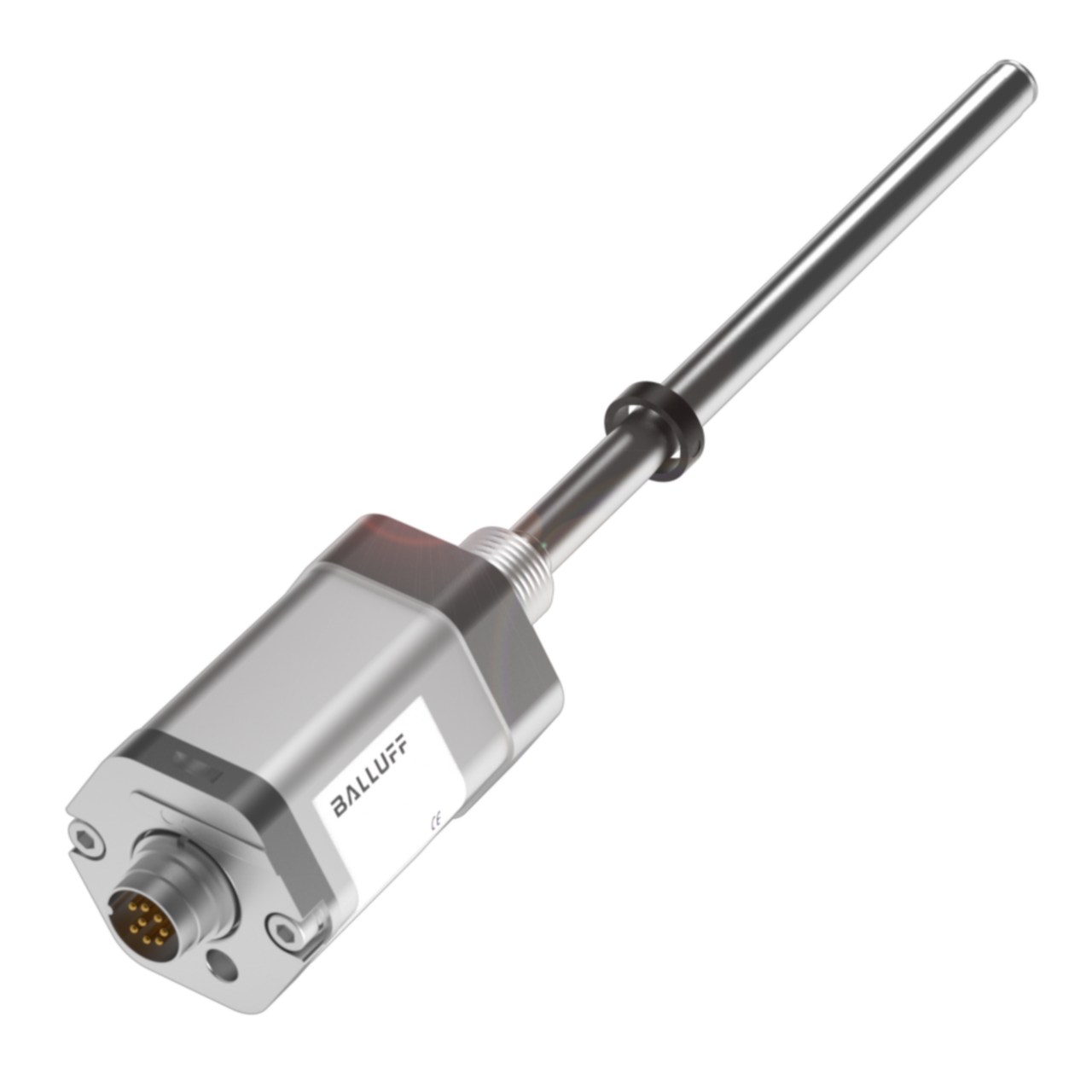

Balluff BTL7-E501-M0150-B-S32 Magnetostrictive linear sensor Part number BTL070E

This is a magnetostrictive linear position sensor from the BTL7-E501 series, used to measure position and displacement in hydraulic cylinders and automation equipment where absolute, non-contact feedback is required. The sensor housing is anodized aluminium with an FKM O-ring seal, rated IP67 with the connector fitted, and it mounts via an M18x1.5 threaded flange. It operates on 10 to 30 VDC, drawing 180 mA, and connects through an M16x0.75 8-pin connector, making it suitable for panel-integrated or machine-mounted installations requiring a sealed, durable interface.

Key specifications

• IP rating: IP67, with connector
• Operating voltage: 10 - 30 VDC
• Connection: M16x0.75 / 8-pin
• Mounting: Threaded flange M18x1.5
