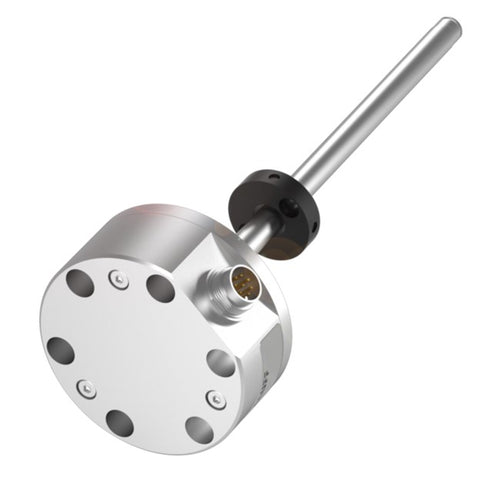

Balluff BTL7-E500-M0750-K-K05 Linear position sensor Part number BTL1WY1

This is a magnetostrictive linear position sensor from Balluff's BTL7-E series, providing an analogue current output for continuous position feedback. The housing is constructed in stainless steel with a PTFE/PUR jacket, and depending on variant offers IP67 or IP68 protection, suiting use in demanding industrial environments. It operates from a 10-30 VDC supply with a rated current of 120 mA, connecting via an M-series connector for integration into automation panels and machinery requiring precise position measurement.

Key specifications

• IP rating: l = S: IP67 with connector l = K: IP68
• Operating voltage: 10 - 30 VDC
• Connection: Connector / 32 = M16x0.75 connector with 8 pins 115 = M12x1 connector with 8 pins
