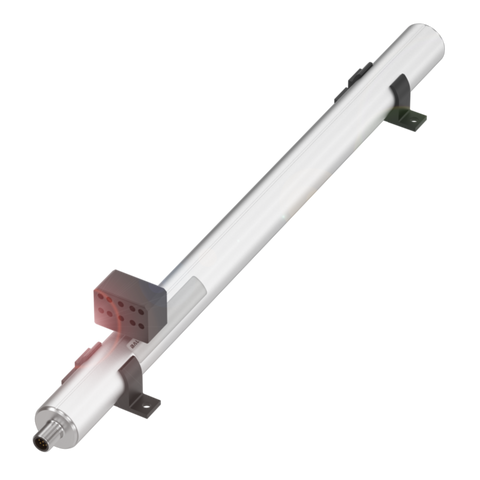

Balluff BTL6-A110-M0250-A1-S115 Magnetostrictive linear sensor Part number BTL002F

The BTL6-A110-M0250-A1-S115 is a magnetostrictive linear position sensor from Balluff's BTL6 series, providing an analogue voltage output for continuous position feedback. It connects via an M12x1, 8-pin connector and operates from a 20-28 V supply, delivering an output of 0-10 V or -10 to 10 V depending on configuration. The housing is aluminium with a zinc die-cast jacket and cover nut, and the sensor carries an IP67 rating when connected, suiting use in industrial automation applications where reliable linear position measurement is required.

Key specifications

• IP rating: IP67 with connector
• Operating voltage: 1 = 20 - 28 V / 3 = 20 - 28 V (if c + d = 10) / 3 = 18 - 30 V (if c + d = 01)
• Connection: 115 = M12x1 connector with 8 pins
