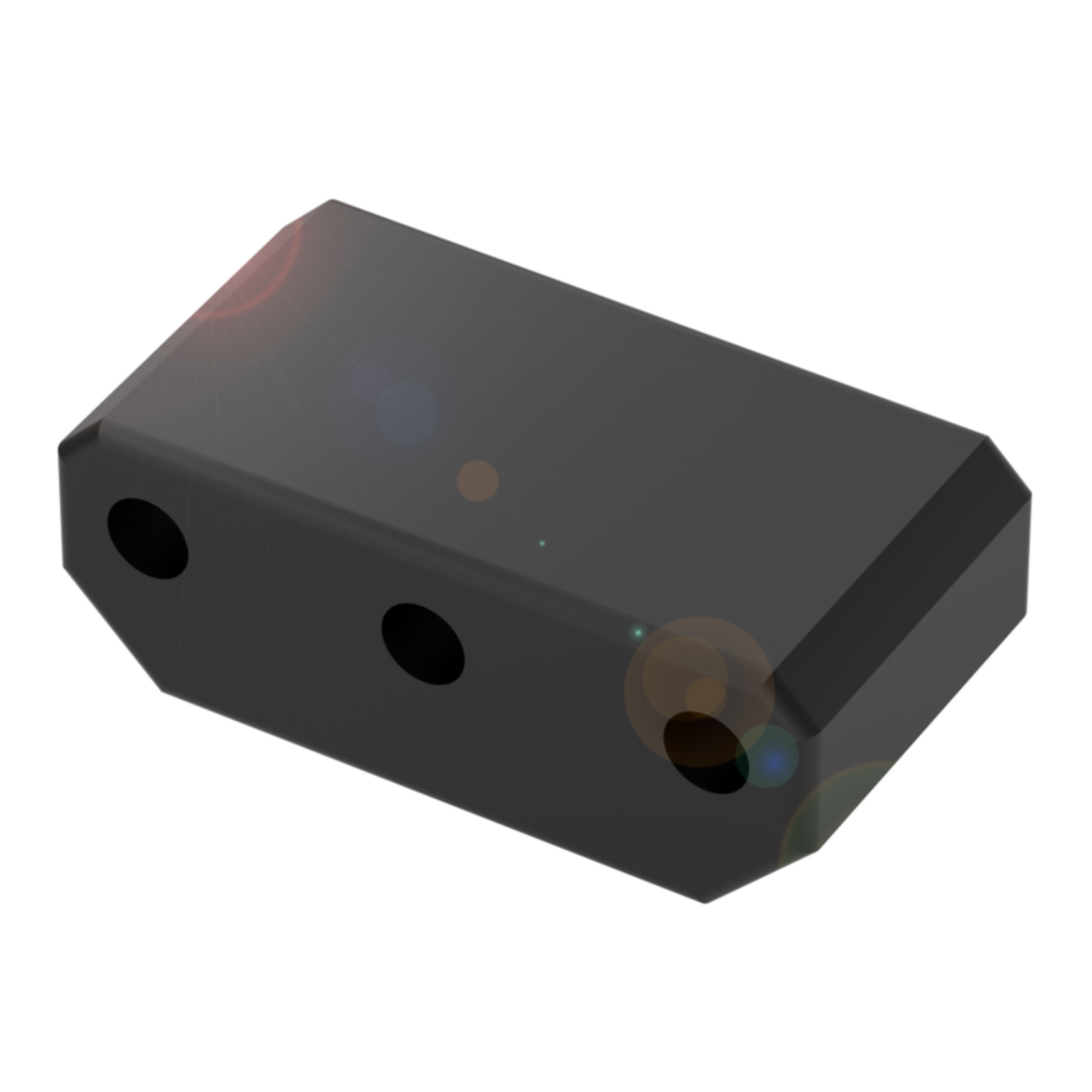

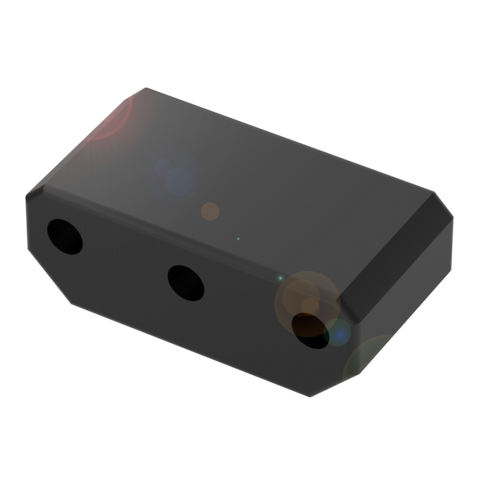

Balluff BTL5-P-3800-2 Magnet for profile style Part number BAM014M

This is a position magnet for use with Balluff profile-style linear displacement transducers, providing the moving reference point that the sensor tracks along its measuring length. The housing and grip are constructed in POM, with mounting via cylinder head screws M4x35 onto the moving part of the machine or cylinder. It is typically fitted in linear position sensing applications where the magnet travels alongside a profile-mounted BTL5 sensor.

Key specifications

• Mounting: Cylinder head screws M4x35
