Description

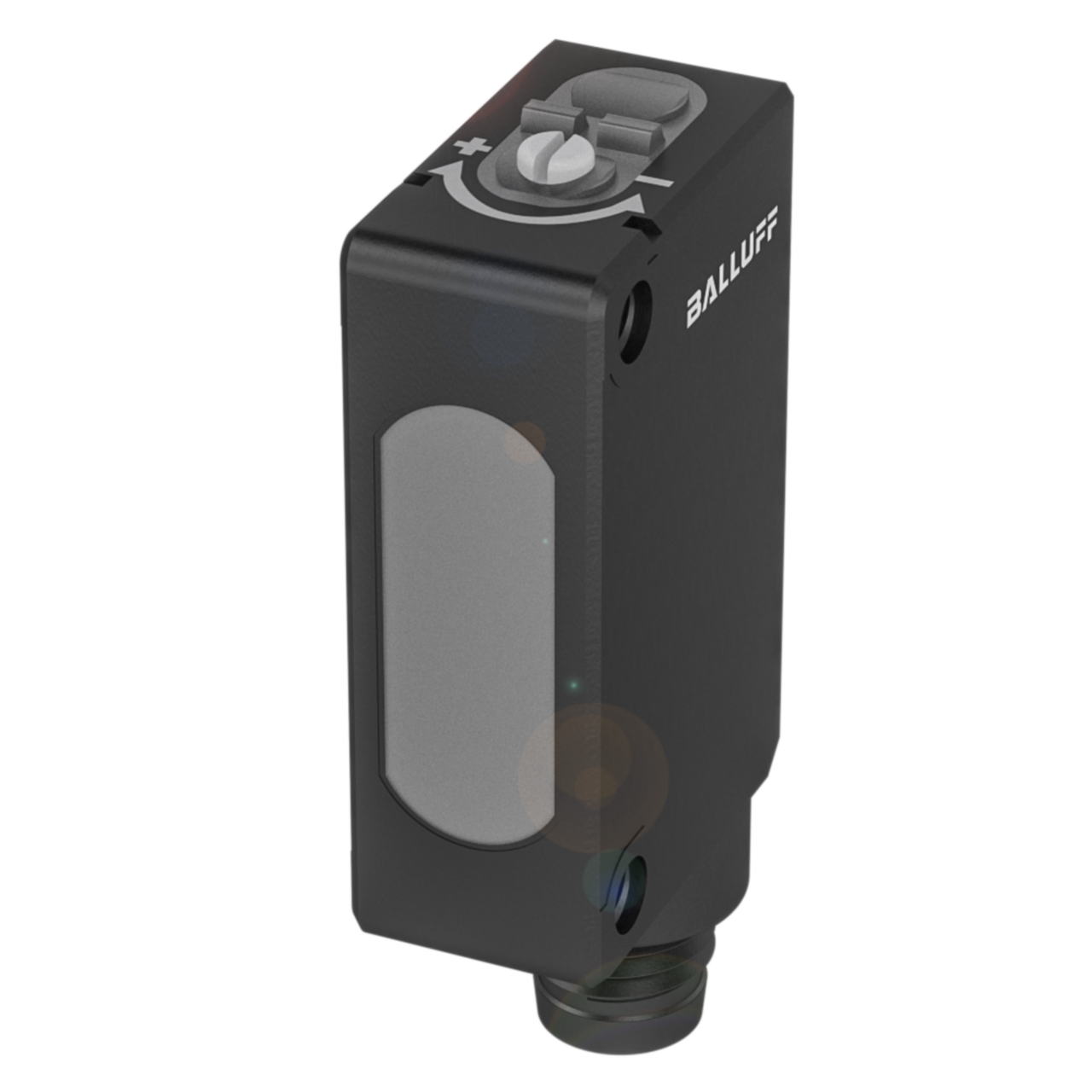

xThe BOS R090K-PU-RH10-S75 is a diffuse photoelectric sensor with background suppression, providing a rated operating distance of 350mm. It features a PNP switching output configurable as normally open or normally closed, with an M8x1 4-pin connector for field wiring. The housing is rated IP67, making it suitable for use in industrial environments where protection against dust and moisture ingress is required. It mounts using an M3 screw fixing and operates from a 10 to 30 VDC supply.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Connection: Connector / M8x1 / 4-pin
- Output: PNP normally open/normally closed (NO/NC)
- Mounting: Screw M3
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | cULus CE UKCA WEEE |
| Material: Housing / Grip | PC / PBT |
| Material: Sensing Surface / Contacts | PMMA |
| Part Width (mm) | 10.7mm |
| Part Length (mm) | 43.5mm |
| Part Height (mm) | 19.5mm |
| Connection Type | Connector / M8x1 / 4-pin |
| Tightening Torque | 0,5 Nm |
| Rated Operating Distance (mm) | 350mm |
| Switching Output | PNP normally open/normally closed (NO/NC) |
| Switching Frequency (Hz) | 1000Hz |
| Operating Voltage | 10 - 30 VDC |
| Mounting Type | Screw M3 |
| Current Rating / Rated Current | 100 mA |
